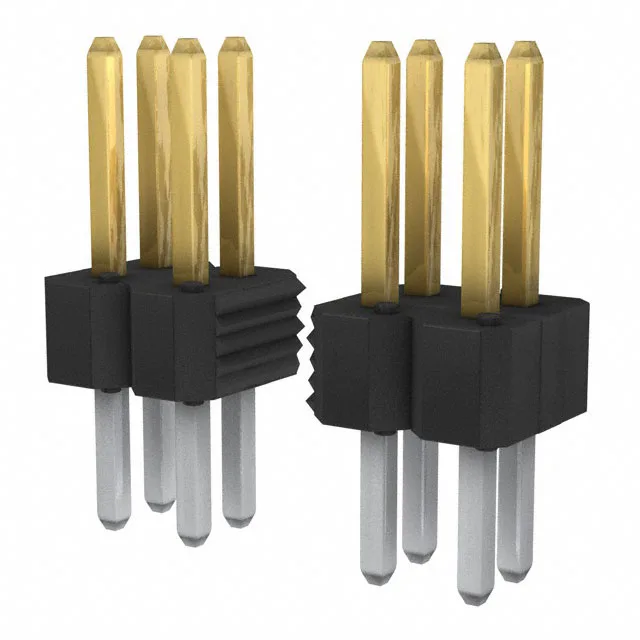

Amphenol ICC (FCI) BERGSTIK II header, order code 10119109-512029LF, 12 positions, dual row, 0.100" (2.54mm) pitch, unshrouded, gold-plated mating contacts, through hole, solder termination.
Amphenol ICC (FCI) 10119109-512029LF Header, 12 Pos, 2.54mm
MPN10119109-512029LF
Active
Amphenol ICC (FCI) BERGSTIK II header, order code 10119109-512029LF, 12 positions, dual row, 0.100" (2.54mm) pitch, unshrouded, gold-plated mating contacts, through hole, solder termination.
$1.1379Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bag |
| Shrouding | Unshrouded |
All specifications
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 12 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.156\" (3.96mm) |
| Overall contact length | 0.486\" (12.34mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
