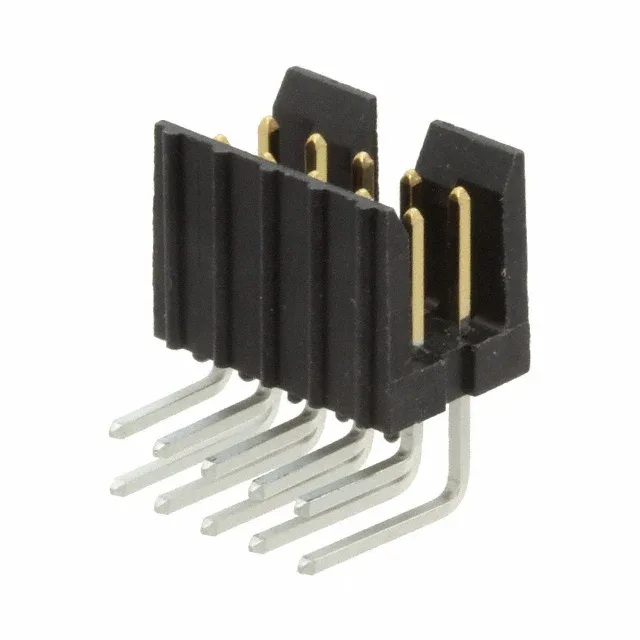

Amphenol ICC (FCI) Mini-PV™, Basics+ 78207-110, Board to Cable/Wire header, 10 circuits, 0.100" (2.54 mm) pitch, through-hole right-angle, shrouded 2-wall, friction lock, 30.0 µinch gold mating finish, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Mini-PV™, Basics+ |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.303\" (7.70mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Keying Slot |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 78207-110: The header is shrouded with two walls and secured by a friction lock, providing basic retention against vibration and accidental unmating.
The part is RoHS non-compliant. If your assembly requires RoHS compliance, this header does not meet that directive — factor that into your material declaration or look for an alternative finish variant if one exists in the series.
Yes. The 78207-110 is a shrouded header with two walls and uses a friction lock for retention.
The 78207-110HLF is a functionally identical variant within the same base product number family, but it is not a cross-manufacturer second source.
No. The 78207-110 is listed as RoHS non-compliant.
