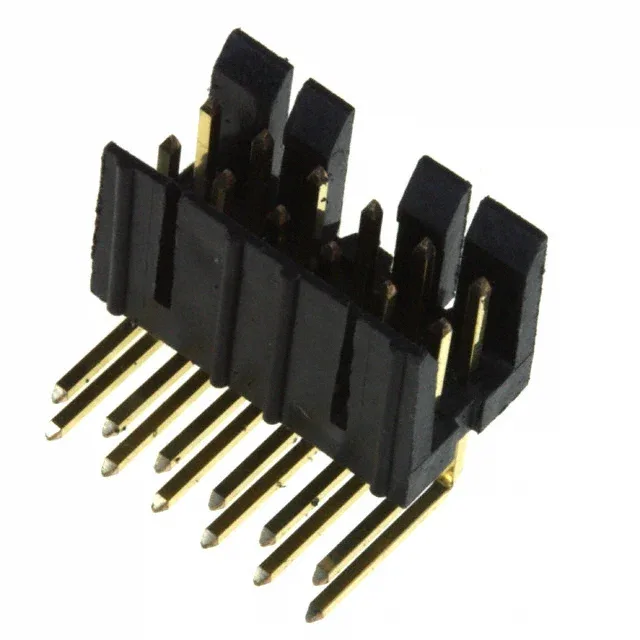

78207-112HLF Amphenol ICC (FCI) 12-Pin Header 2.54mm Pitch

MPN78207-112HLF
Active

Amphenol ICC (FCI) Mini-PV™, Basics+ series, 12-position dual-row header, 0.100" (2.54mm) pitch, right-angle through-hole, shrouded with friction lock, 30.0µin gold-plated male pins, UL94 V-0 black housing.

$1.9700Ref. price · indicative, final on quote
78207-112HLF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

78207-112HLF Technical Specifications
ParameterValue
SeriesMini-PV™, Basics+
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader
Fastening typeFriction Lock
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.303\" (7.70mm)
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
FeaturesKeying Slot
ShroudingShrouded - 2 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions12
Row spacing - mating0.100\" (2.54mm)
Contact length - post0.120\" (3.05mm)
Contact finish - matingGold or Gold, GXT™
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Board-to-Wire Header for Harness Builds

The 78207-112HLF: A friction lock on the shroud holds the mating plug in place against moderate vibration — no secondary hardware needed.

Sourced through independent distribution channels; quoted to order against your BOM quantity. Availability and current pricing confirmed at RFQ time.
