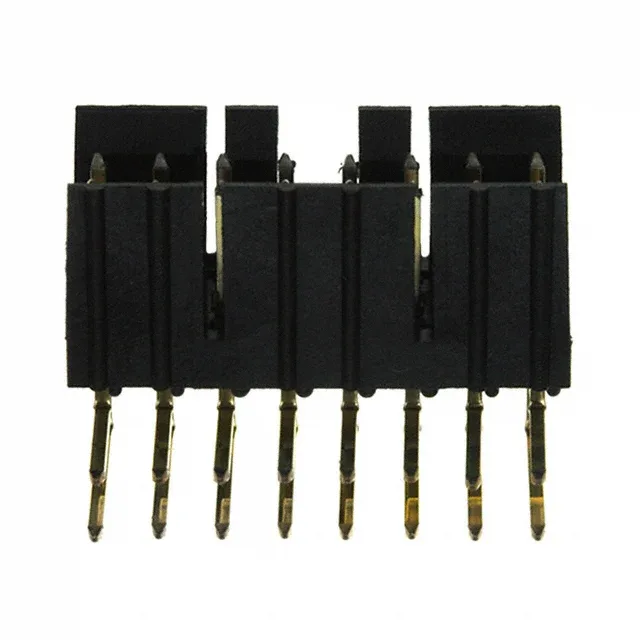

78207-116HLF — Amphenol product photo
Amphenol

78207-116HLF Amphenol ICC Header, 16 Pos, 0.100" Pitch, R/A

MPN78207-116HLF
Active

Amphenol ICC (FCI) Mini-PV™, Basics+ series, 16-position dual-row header, 0.100" (2.54 mm) pitch, right-angle through-hole, shrouded 2-wall with friction lock, gold or GXT™ plating, UL94 V-0 black housing.

$2.6300Ref. price · indicative, final on quote
78207-116HLF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

78207-116HLF Technical Specifications
ParameterValue
SeriesMini-PV™, Basics+
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader
Fastening typeFriction Lock
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.303\" (7.70mm)
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
FeaturesKeying Slot
ShroudingShrouded - 2 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions16
Row spacing - mating0.100\" (2.54mm)
Contact length - post0.120\" (3.05mm)
Contact finish - matingGold or Gold, GXT™
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

16 Circuits, 0.100" Pitch, Dual-Row — Board Fit Check

The row spacing is also 0.100" (2.54 mm), giving a 2×8 grid that occupies a compact board area.

Shrouded 2-Wall with Friction Lock — Vibration-Resistant Mating

Through-Hole, Right-Angle — Solder Tail Length and Board Thickness

The solder post length is 0.120" (3.05 mm) — this protrudes through the board for wave soldering. For a standard 1.6 mm (0.063") PCB, the tail extends about 1.4 mm below the board, enough for a reliable fillet.

RoHS compliant.

Frequently asked questions

Is 78207-116HLF shrouded and what locking mechanism does it have?

Yes, it is a shrouded 2-wall header with a friction lock. The shroud protects the pins and guides the receptacle; the friction lock provides retention against vibration.

What is the closest functional alternative if 78207-116HLF is unavailable?

The 78207-116 (without the HLF suffix) is the same part number with identical specs — same pitch, positions, shrouding, and plating. The 78207-114HLF is a 14-position version of the same header if the circuit count can be reduced.
