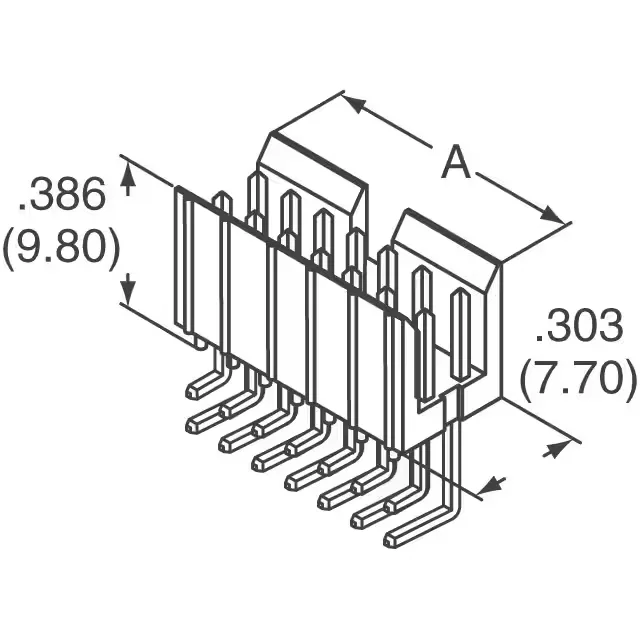

78207-114HLF — Amphenol product photo
Amphenol

78207-114HLF Amphenol ICC (FCI) Mini-PV™ Header – 14 Pos

MPN78207-114HLF
Active

Amphenol ICC (FCI) Mini-PV™, Basics+ header, 78207-114HLF, 14-position, 0.100" (2.54mm) pitch, right-angle through-hole, shrouded 2-wall, friction lock, gold-plated male pins, UL94 V-0 black housing.

$1.6800Ref. price · indicative, final on quote
78207-114HLF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

78207-114HLF Technical Specifications
ParameterValue
SeriesMini-PV™, Basics+
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader
Fastening typeFriction Lock
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.303\" (7.70mm)
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
FeaturesKeying Slot
ShroudingShrouded - 2 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions14
Row spacing - mating0.100\" (2.54mm)
Contact length - post0.120\" (3.05mm)
Contact finish - matingGold or Gold, GXT™
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

14-Position Right-Angle Header for Board-to-Cable Wiring

The 78207-114HLF: This is a 14-position, 2-row header from the Mini-PV™ and Basics+ series, built for board-to-cable/wire applications. A friction lock on the shroud holds the pair together — it won't rattle loose under moderate vibration, but it's not a secondary lock. The keying slot prevents mismating with non-keyed housings.

Gold Plating and Mating Cycle Life

The mating contact finish is 30.0 µinch gold over nickel — that's a solid industrial-grade plating. The phosphor bronze base spring keeps the normal force consistent through those cycles.

Frequently asked questions

How can I order 78207-114HLF or check stock?

The 78207-114HLF is Active and RoHS compliant. We source it through independent distribution — submit an RFQ with your target quantity and we'll confirm availability and pricing at quote time. No stock figures are published here.

What is the mating connector for 78207-114HLF?

This header mates with Mini-PV crimp receptacle housings that accept the matching male pin contacts. The friction lock on the shroud engages with the corresponding latch on the receptacle. Confirm the circuit count and keying slot alignment with your chosen receptacle part number.
