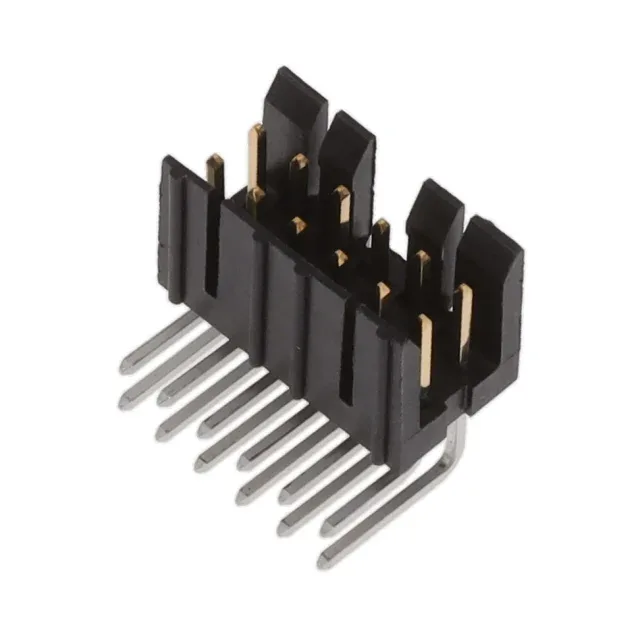

78207-112 — Amphenol product photo
Amphenol

78207-112 Amphenol ICC (FCI) Mini-PV Header, 12 Pos, 2.54mm

MPN78207-112
Active

Amphenol ICC (FCI) Mini-PV™, Basics+ header, 12 circuits, 0.100" (2.54 mm) pitch, through-hole right-angle, shrouded 2-wall, friction lock, 30.0µin gold mating finish, UL94 V-0.

$1.9700Ref. price · indicative, final on quote
78207-112 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

78207-112 Technical Specifications
ParameterValue
SeriesMini-PV™, Basics+
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader
Fastening typeFriction Lock
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.303\" (7.70mm)
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
FeaturesKeying Slot
ShroudingShrouded - 2 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions12
Row spacing - mating0.100\" (2.54mm)
Contact length - post0.120\" (3.05mm)
Contact finish - matingGold or Gold, GXT™
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Board Fit and Mating Half

The 78207-112: A friction lock on the top wall holds the pair together under moderate vibration — no secondary latch required for most panel or harness applications. Keying slot in the housing prevents cross-mating with non-keyed receptacles, a useful safeguard when multiple similar headers share a board.

Contact Plating and Cycle Life

Gold plating also resists corrosion in humid or mildly aggressive environments, making this header a better fit than a tin-plated alternative for equipment that sees seasonal condensation or occasional washdown mist.

Sourcing and Production Status

RoHS non-compliant per the original listing; confirm your exemption or waiver requirements before committing the line.

Position Count Alternatives in the Same Series

The Mini-PV family includes identical right-angle headers in 10-position (78207-110HLF) and 14-position (78207-114HLF) variants.
