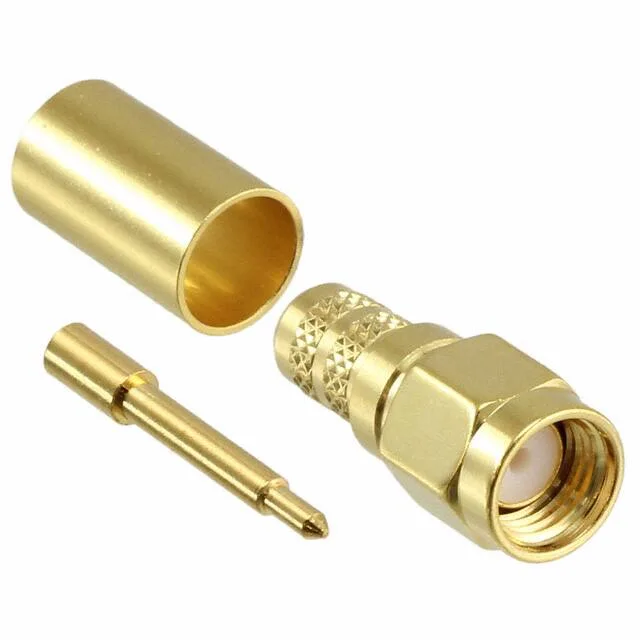

901-10009-RFX Amphenol SMA Plug, 50 Ohm, 12.4 GHz

MPN901-10009-RFX
Active

Amphenol SMA plug, male pin, 50 Ohm, 12.4 GHz, gold body, crimp shield/solder contact, free-hanging, 500 mating cycles, bulk pack of 3 pcs.

$11.1100Ref. price · indicative, final on quote
StockIn Stock (20)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

901-10009-RFX Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeThreaded
Frequency - max12.4 GHz
Cable groupBelden 9258, LMR-240
Operating temperature-65°C~165°C
Body materialBrass
Housing colorGold
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk
Includes3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Impedance50Ohm
Body finishGold
Mating cycles500
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingGold

Product details

SMA Plug for LMR-240 and Belden 9258

The Amphenol 901-10009-RFX is an SMA plug, male pin connector designed for field-terminated RF cable assemblies. The cable groups specified are Belden 9258 and LMR-240, both 0.195-inch diameter cables with solid or stranded centre conductors. The PTFE dielectric in the connector matches the cable dielectric for a consistent impedance transition through the termination.

Thermal and Mechanical Limits

The threaded coupling nut provides vibration-resistant mating.

Frequently asked questions

What is the impedance and frequency range of 901-10009-RFX?

The 901-10009-RFX is a 50 Ohm SMA plug rated to 12.4 GHz maximum frequency.

What cable types are compatible with 901-10009-RFX?

The 901-10009-RFX is specified for Belden 9258 and LMR-240 cables. Both are 0.195-inch diameter coax with solid or stranded centre conductors; the connector's PTFE dielectric and crimp ferrule are sized for these cable groups.
