Amphenol RF 901-10013-RFX SMA Jack, 50 Ohm, 12.4 GHz

MPN901-10013-RFX
Active

Amphenol RF SMA jack, 50 Ohm, bulkhead-mount, female socket, solder contact, crimp shield, 12.4 GHz, 375 V, -65°C~165°C, includes mounting hardware.

$11.2400Ref. price · indicative, final on quote
901-10013-RFX datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

901-10013-RFX Technical Specifications
ParameterValue
Mounting typePanel Mount
Connector typeJack, Female Socket
Fastening typeThreaded
Voltage rating375 V
Frequency - max12.4 GHz
Mounting featureBulkhead - Front Side Nut
Cable groupRG-174, 188, 188A, 316, LMR-100, M17/119-RG174
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBulk

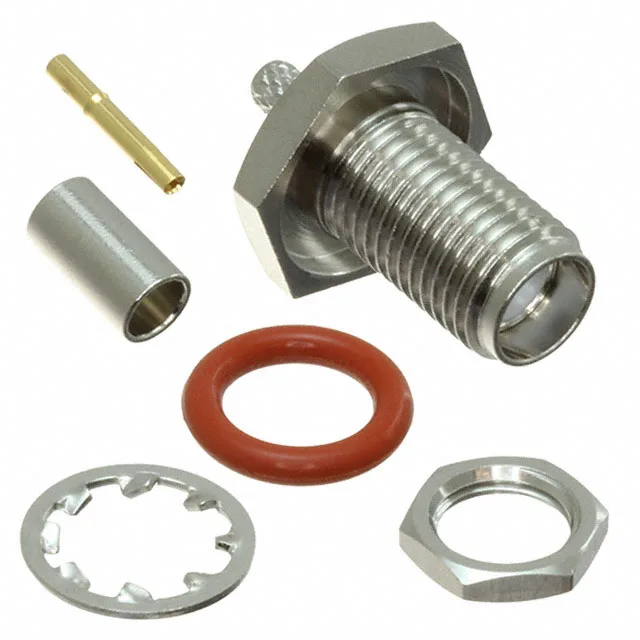

Includes6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut
Impedance50Ohm
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingGold

Product details

Bulkhead SMA Jack Kit for RG-174-Class Cables

The 901-10013-RFX: The 50 Ohm impedance and 12.4 GHz max frequency place it in the standard SMA performance band, suited for test equipment, antenna feeds, and telecom infrastructure where the signal path stays under 12.4 GHz.

Cable Groups and Termination

This jack is designed for a specific cable diameter range: RG-174, RG-188A, RG-316, LMR-100, and M17/119-RG174. The centre contact is soldered, and the shield is crimped.

Mating and Mechanical Life

Threaded fastening (the standard SMA coupling nut) provides vibration-resistant mating. The single-port, bulkhead-mount design with a front-side nut means the jack is secured from the outside of the panel, and the included gasket seals the panel opening.

Frequently asked questions

Which cables are compatible with 901-10013-RFX?

The 901-10013-RFX is designed for RG-174, RG-188, RG-188A, RG-316, LMR-100, and M17/119-RG174 cable groups. The centre contact is soldered and the shield is crimped.

Does 901-10013-RFX include all necessary mounting hardware?

Yes, the 901-10013-RFX ships as a 6-piece kit: one connector body, one contact, one ferrule, one gasket, one lockwasher, and one nut — everything needed for a bulkhead install.
