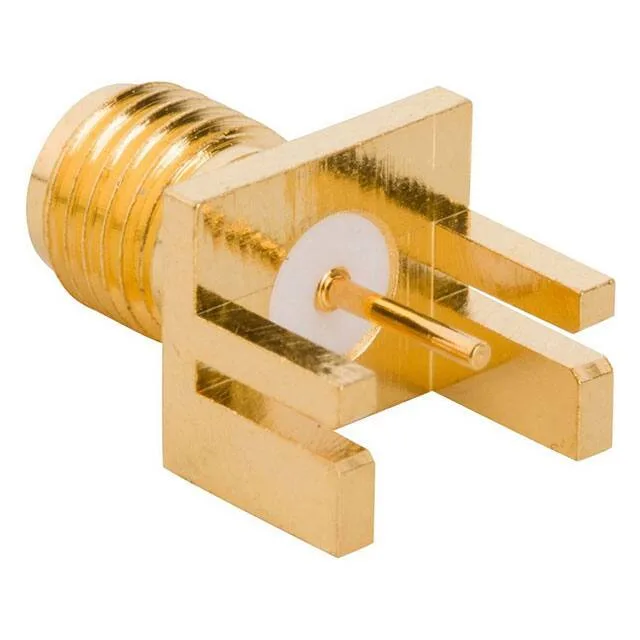

901-10019B — Amphenol product photo
Amphenol

901-10019B Amphenol RF SMA Jack, 50 Ohm, 18 GHz, End Launch

MPN901-10019B
Active

Amphenol RF SMA jack, female socket, 50 Ohm, 18 GHz, end launch, threaded, gold body, 500 mating cycles, solder termination.

$3.4300Ref. price · indicative, final on quote
901-10019B datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

901-10019B Technical Specifications
ParameterValue
Mounting typeBoard Edge, End Launch
Connector typeJack, Female Socket
Fastening typeThreaded
Frequency - max18 GHz
Operating temperature-65°C~165°C
Body materialBrass
Housing colorGold
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBulk
Impedance50Ohm
Body finishGold
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

The 901-10019B: The threaded fastening type provides a vibration-resistant mate that holds the interface impedance stable through the connection.

The 18 GHz bandwidth ceiling means this jack supports signals up to the Ku-band without significant roll-off — the limiting factor in the signal path will be the cable and the mating plug, not this connector.

End-Launch Footprint and Solder Termination

Shield termination and contact termination are both solder, meaning the outer conductor and centre pin are soldered directly to the board.

Frequently asked questions

Where can I buy 901-10019B and get a price?

Submit a request for quote (RFQ) for current pricing and availability — both are confirmed at quote time.

Is 901-10019B compatible with standard SMA connectors?

The 50 Ohm impedance and 18 GHz rating are maintained when mated with a compatible 50 Ohm SMA plug.
