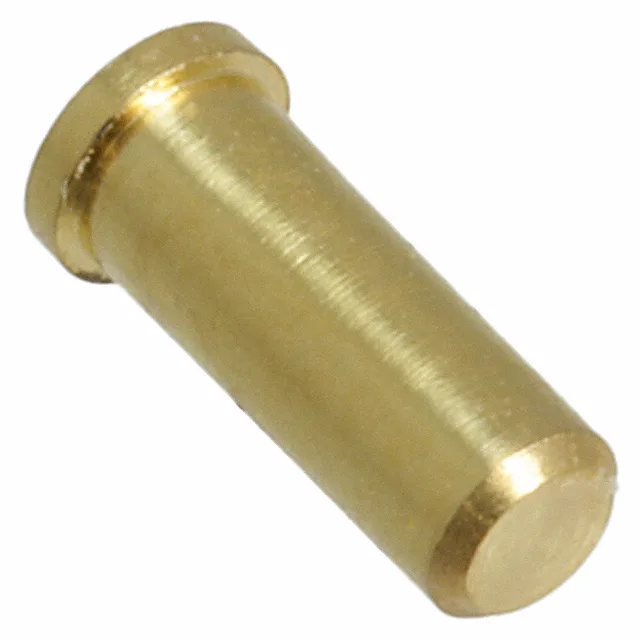

Harwin Inc. — PCB Pin Sockets

Harwin Inc. PCB Pin Sockets — 29 part numbers with specifications and datasheets. Filter by key specs and request a quote on IC Source Direct.

Base Product Number
D01-990 · H3155 · H3161 · H3163
Length - Overall
0.142" (3.61mm) · 0.207" (5.26mm) · 0.312" (7.92mm) · 0.222" (5.65mm)
Socket Depth
0.124" (3.15mm) · 0.140" (3.56mm) · 0.192" (4.88mm) · 0.187" (4.75mm)
Mounting Hole Diameter
0.039" ~ 0.043" (0.99mm ~ 1.09mm) · 0.075" ~ 0.077" (1.91mm ~ 1.96mm) · 0.086" ~ 0.090" (2.18mm ~ 2.29mm) · 0.086" ~ 0.088" (2.18mm ~ 2.24mm)
Accepts Pin Diameter
0.016" ~ 0.020" (0.41mm ~ 0.51mm) · 0.018" ~ 0.020" (0.46mm ~ 0.51mm) · 0.035" ~ 0.041" (0.89mm ~ 1.05mm) · 0.079" ~ 0.091" (2.00mm ~ 2.30mm)
Flange Diameter
0.057" (1.45mm) · 0.092" (2.34mm) · 0.125" (3.18mm) · 0.105" (2.67mm)
Insertion Force
2.00N ~ 6.00N · 3.00N ~ 9.00N · 2.99N ~ 6.00N · 3.00N ~ 6.00N
Pin Hole Diameter
0.043" (1.09mm) · - · 0.042" (1.07mm) · 0.040" (1.02mm)
