ZER-04V-S — JST product photo
JST

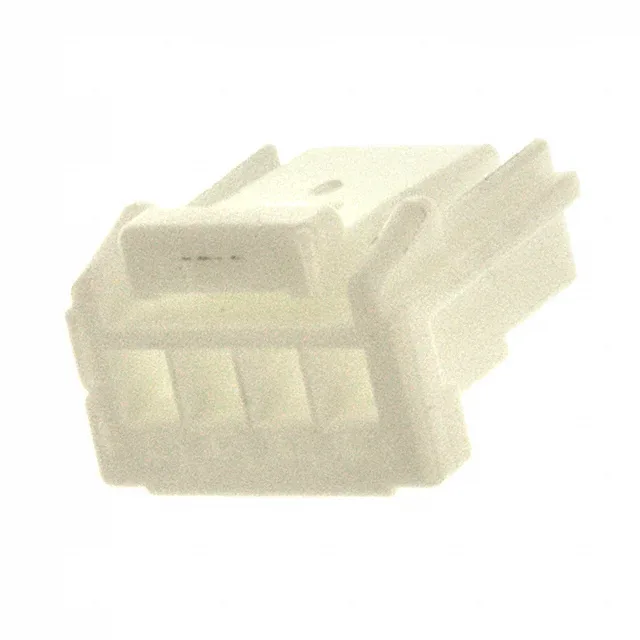

JST ZER-04V-S Receptacle Housing, 4 Pos, 1.50 mm

MPNZER-04V-S
Active

JST ZE series receptacle housing, ZER-04V-S, 4 positions, 1.50 mm pitch, 1 row, natural PBT, free-hanging, latch holder, crimp termination, contacts not included.

$0.1800Ref. price · indicative, final on quote
ZER-04V-S datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

ZER-04V-S Technical Specifications
ParameterValue
SeriesZE
GenderFemale Socket
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Holder
Operating temperature-25°C ~ 85°C
ColorNatural
Insulation materialPolybutylene Terephthalate (PBT)
NoteContacts Not Included
Pitch0.059\" (1.50mm)
PackageBulk
Rows1
Contact terminationCrimp
Positions4

Product details

ZE Series 4-Position Receptacle Housing

The JST ZER-04V-S is a 4-circuit receptacle housing from the ZE series, a 1.50 mm pitch wire-to-board connector family. This natural-colour PBT housing accepts female socket crimp terminals (sold separately) and is designed for free-hanging, in-line harness assembly.

Crimp Termination and Contacts

The housing accepts female socket contacts that are crimp-terminated to the wire. The note "Contacts Not Included" means the ZER-04V-S ships as an empty shell — the matching crimp terminal must be ordered separately and assembled onto the wire before insertion into the housing.

Operating Temperature and Material

The housing is ROHS3 compliant, clearing regulatory requirements for EU and most global markets.

Frequently asked questions

What contacts are compatible with ZER-04V-S?

The ZER-04V-S accepts female socket crimp terminals from the JST ZE series. The housing ships empty — contacts are not included and must be ordered separately, typically the SZE-002T-P0.3 or the equivalent ZE-series terminal for the wire gauge in your harness.
