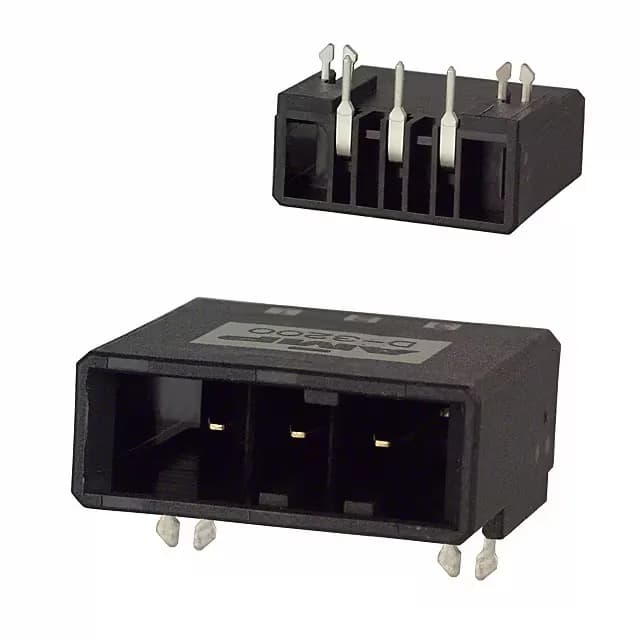

TE Connectivity AMP Connectors, Dynamic D-3200 series, header, 3 positions, 5.08mm pitch, right-angle through-hole, shrouded 4-wall, gold mating contact, board lock, UL94 V-0, -55°C~105°C, 600V rating.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3200 |
| Type | Tab |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 600V |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.368\" (9.35mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.200\" (5.08mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 1-178138-3: The tin-plated solder posts (contact finish - post) are compatible with standard lead-free wave solder profiles; the gold-on-mating side is reserved for the connection that sees disconnect.
ROHS3 compliant. The base product number 178138 covers the family; this specific variant is the 3-position right-angle with gold mating finish.
Yes, this header is part of the Dynamic D-3200 series and mates with the matching D-3200 receptacle housings and crimp terminals. The 5.08 mm pitch and single-row layout are specific to the D-3200 family.
Operating temperature range is -55°C to 105°C. The part is ROHS3 compliant.
