TE Connectivity AMP Connectors 1-5499160-2 — Pin Headers

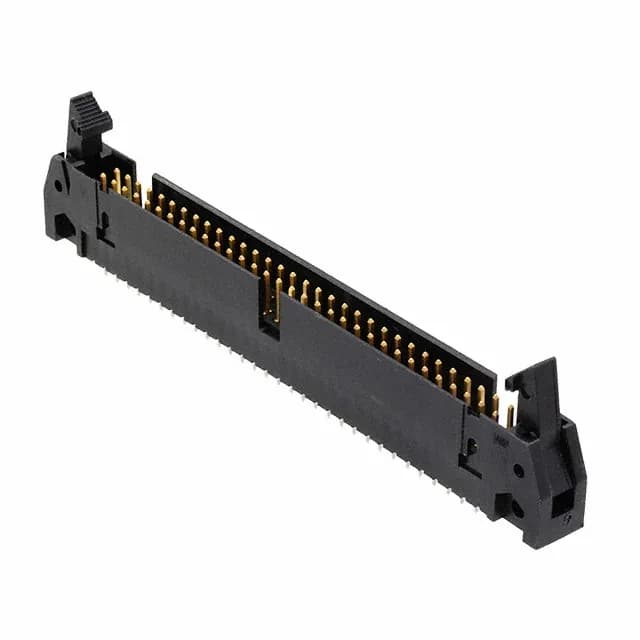

1-5499160-2 TE AMP-Latch Header 64 Pos 2.54mm Pitch

MPN1-5499160-2
Active

TE Connectivity AMP-Latch header, 1-5499160-2, 64 positions, 2-row, 0.100" (2.54 mm) pitch, shrouded - 4 wall, through-hole solder termination, male pin, gold or gold-palladium mating finish, 1 A per contact, -55°C to 105°C, UL94 V-0.

$14.7000Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-5499160-2 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMP-Latch
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-5499160-2 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Lock/Eject Hooks, Short
Current rating1A
Operating temperature-55°C~105°C
Insulation colorBlack
Insulation height0.549\" (13.94mm)
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk

All specifications

1-5499160-2 additional specifications
ParameterValue
FeaturesKeying Slot, Mounting Flange
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions64
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.110\" (2.79mm)
Overall contact length0.639\" (16.23mm)
Contact finish - matingGold or Gold-Palladium
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Board-to-Cable Header for Dense I/O

The latch lock/eject hooks (short version) provide a positive retention with the matching AMP-Latch socket — the lock engages audibly on mate and the eject hooks simplify unmate in tight panel spaces. The mounting flange adds mechanical stability to the board interface.

Mates with AMP-Latch IDC socket assemblies (e.g., 1-746285-2 or similar 64-position receptacles).

Temperature and Flammability Rating

UL94 V-0 housing — the material self-extinguishes within 10 seconds, required for equipment inside a flame-rated enclosure.

Frequently asked questions

Is 1-5499160-2 RoHS compliant?

Yes, ROHS3 compliant.

Does 1-5499160-2 have a keying slot?

Yes, the housing includes a keying slot and a mounting flange.
