TE Connectivity AMP Connectors 104128-1 — Pin Headers

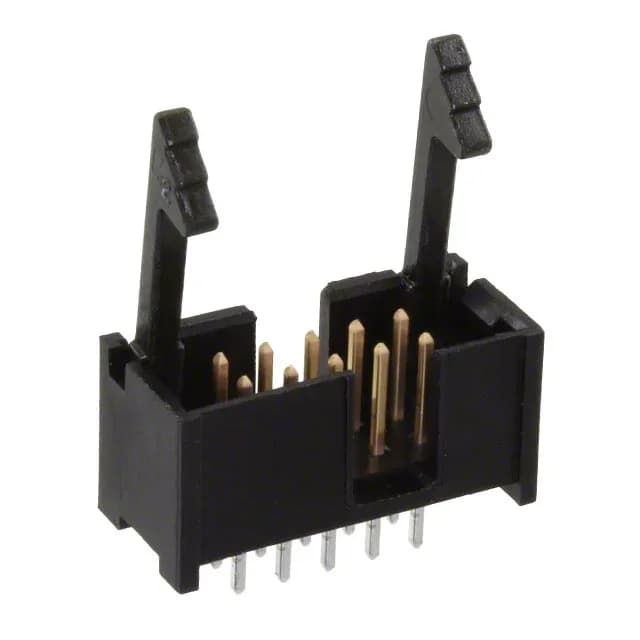

104128-1 TE AMP-Latch Header 10 Pos 2.54mm Pitch

MPN104128-1
Active

TE Connectivity AMP-Latch, Header, 10 Positions, 2 Rows, 0.100" (2.54mm) Pitch, Through Hole, Solder, Shrouded - 4 Wall, Latch Lock/Eject Hooks, Long, 1A per Contact, 250VAC

$4.0700Ref. price · indicative, final on quote
RoHSRoHS non-compliant
SeriesAMP-Latch
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

104128-1 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Lock/Eject Hooks, Long
Voltage rating250VAC
Current rating1A per Contact
Operating temperature-65°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.385\" (9.78mm)
Insulation materialPolyamide (PA), Nylon, Glass Filled

All specifications

104128-1 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions10
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin-Lead
Contact length - post0.120\" (3.05mm)
Contact finish - matingGold or Gold-Palladium
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

0.100" pitch, 10 positions, full 4-wall shroud

The 104128-1: The full 4-wall shrouding protects the male pins during handling and guides the mating cable-side receptacle into alignment. The mating contact finish is 30.0µin gold or gold-palladium, good for moderate cycle life in signal applications. The latch lock with long eject hooks secures the mated connection against vibration and provides a mechanical lever for unmating in dense boards.

Mates with AMP-Latch receptacles

This header mates with the matching AMP-Latch IDC socket or cable-mount receptacle. The 0.100" row spacing and keying slot ensure correct orientation.

Frequently asked questions

Is 104128-1 a shrouded header?

Yes – it is a shrouded - 4 wall header. The full shroud protects the pins and guides the mating connector.

What is the current rating of 104128-1?

Rated 1A per contact at 250VAC. This is a signal-level rating; do not use for power distribution.

Is 104128-1 RoHS compliant?

No – it is RoHS non-compliant due to tin-lead post plating. Verify your exemption before BOM commitment.
