TE Connectivity AMP Connectors 2-2106003-4 — Direct Wire-to-Board

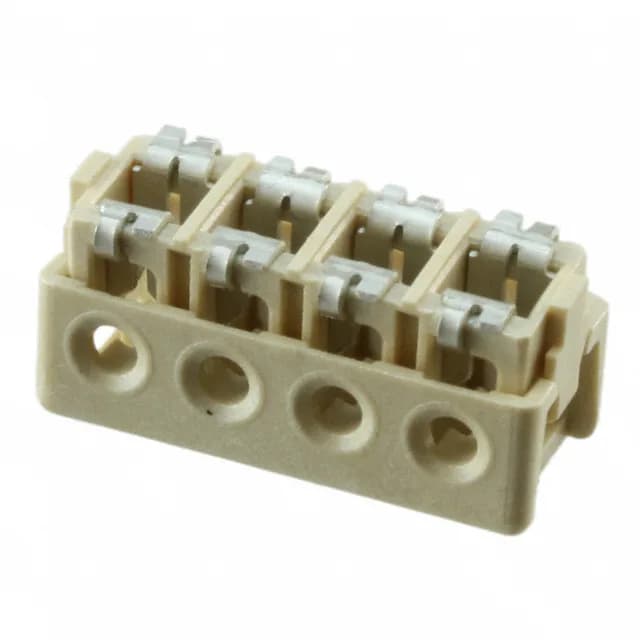

TE Connectivity 2-2106003-4 IDC Connector, 4 Pos, 22 AWG

MPN2-2106003-4
Active

TE Connectivity, IDC connector, 2-2106003-4, 4 positions, 1 row, 4.00 mm pitch, 22 AWG, SMT right-angle, tin contacts, natural.

$1.0891Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2-2106003-4 specifications
ParameterValue
MountingSurface Mount, Right Angle
Connector typeIndividual Wires
Wire gauge22 AWG
Cable pitch0.157\" (4.00mm)
Cable terminationIDC
ColorNatural
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesClosed End
Contact finishTin
Rows1
Board-Side pitch0.157\" (4.00mm)
Positions4

Product details

The 2-2106003-4: The 4.00 mm cable and board-side pitch gives enough spacing for discrete wire routing without crowding the board edge — a clean fit for low-density signal or power-tap applications where a ribbon cable is overkill. The natural housing and tin contacts suit interior, low-mating-cycle duty inside an enclosure.

IDC termination for individual wires — not ribbon cable — means each 22 AWG conductor is pressed into its own slot in the housing. The closed-end feature blocks the far side of the housing, preventing the wire from pushing through past the contact.

Frequently asked questions

Where can I order 2-2106003-4 and get a price?

Submit a request for your BOM quantity to receive current pricing and availability — both confirmed at quote time.

Is 2-2106003-4 compatible with 22 AWG wire?

Yes, the 2-2106003-4 is specified for 22 AWG wire termination via its IDC slot.
