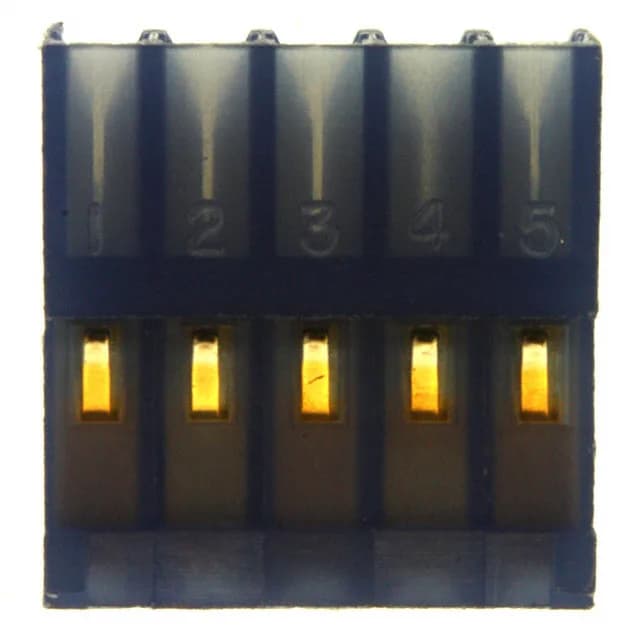

TE Connectivity MTA-100 receptacle, 3-644043-5, 5 positions, 1 row, 0.100" (2.54mm) pitch, IDC termination, female socket, gold 30.0µin contacts, locking ramp, closed end, free-hanging right-angle mount, blue.
| Parameter | Value |
|---|---|
| Series | MTA-100 |
| Wire type | Discrete or Ribbon Cable |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line), Right Angle |
| Connector type | Receptacle |
| Fastening type | Locking Ramp |
| Wire gauge | 26 AWG |
| Cable termination | IDC |
| Color | Blue |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Features | Closed End |
| Contact finish | Gold |
| Rows | 1 |
| Positions | 5 |
| Contact finish thickness | 30.0µin (0.76µm) |
The 0.100" (2.54mm) pitch matches the standard MTA-100 header footprint, so the board layout is a known quantity if you already use this series. Closed-end construction stops the wire from pushing through the back of the housing during assembly, a common gotcha on open-end IDC parts.
The pitch is 0.100" (2.54mm), the standard MTA-100 spacing that matches the full series of headers.
Yes, the 3-644043-5 accepts both discrete wires and ribbon cable, terminated via IDC for 26 AWG.
