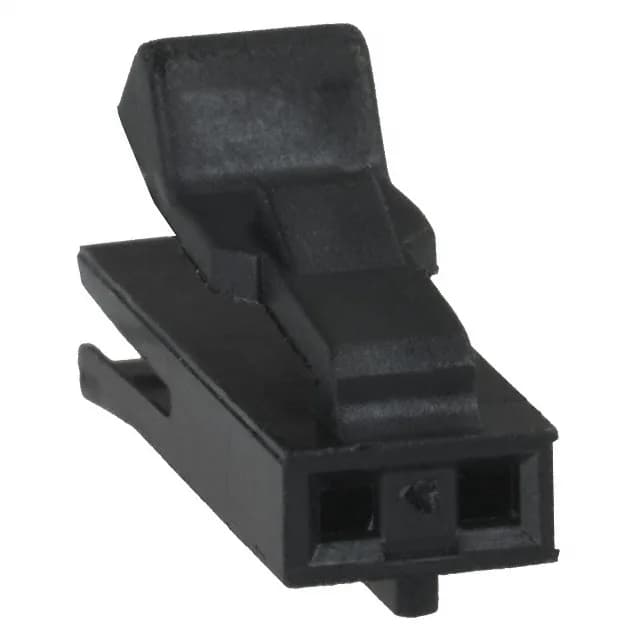

TE Connectivity AMP 487526-1, FFC receptacle housing, 2 circuits, 0.100" (2.54 mm) pitch, latch lock, UL94 V-0, contacts not included, 1.5 A, 300 V, -65°C to 105°C.
| Parameter | Value |
|---|---|
| Connector type | Housing for Female Contacts |
| Flat flex type | FFC |
| Voltage rating | 300 V |
| Current rating | 1.5 A |
| Operating temperature | -65°C ~ 105°C |
| Housing color | Black |
| Housing material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Note | Contacts Not Included |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Rows | 1 |
| Locking feature | Latch Lock |
| FFC, FCB thickness | 0.05-0.13mm |
| Positions | 2 |
The 487526-1: That current ceiling keeps this housing in signal-duty territory — think sensor feeds, indicator lamps, or low-power switch inputs.
The housing accepts FFC thickness from 0.05 mm to 0.13 mm, covering standard 0.12 mm cable stock. Single-row, 2-position layout means a small board footprint. The housing colour is black, and it ships in bulk packaging.
The housing accepts FFC thickness between 0.05 mm and 0.13 mm.
