The 487526-2: This housing accepts female crimp contacts for 0.05-0.13 mm thick FFC cable — the terminals are ordered separately and must be inserted before mating. The latch lock engages when the mating plug is fully seated; confirm the contact part number from the TE Connectivity FFC terminal family that matches your wire gauge and plating requirement.

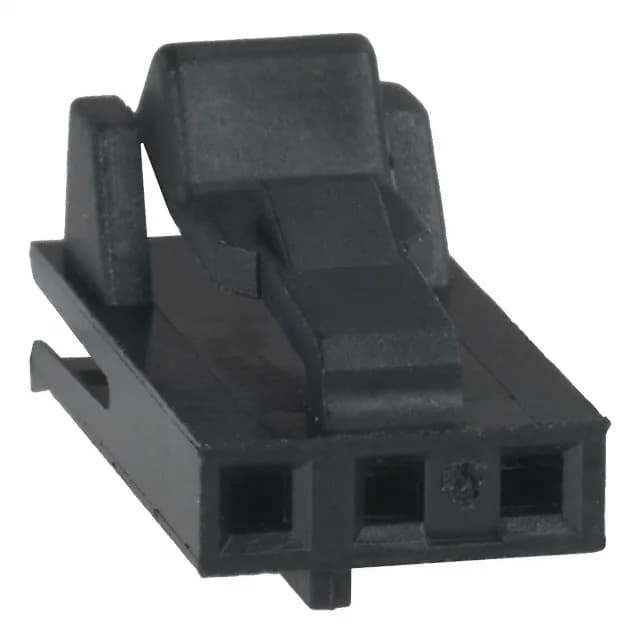

487526-2 TE Connectivity FFC Housing 3 Pos 2.54mm Pitch
MPN487526-2
Active
TE Connectivity AMP Connectors 487526-2, FFC receptacle housing, 3 circuits, 0.100" (2.54 mm) pitch, single row, latch lock, UL94 V-0, -65°C to 105°C, 300 V, 1.5 A, contacts not included.
$1.0800Ref. price · indicative, final on quote
RoHSRoHS Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Connector type | Housing for Female Contacts |
| Flat flex type | FFC |
| Voltage rating | 300 V |
| Current rating | 1.5 A |
| Operating temperature | -65°C ~ 105°C |
| Housing color | Black |
| Housing material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Note | Contacts Not Included |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Rows | 1 |
| Locking feature | Latch Lock |
| FFC, FCB thickness | 0.05-0.13mm |
| Positions | 3 |
Product details
Frequently asked questions
Does 487526-2 come with contacts?
The housing accepts FFC cable 0.05-0.13 mm thick.
What is the pitch of 487526-2?
The pitch is 0.100" (2.54 mm), single row, 3 positions — the same grid as standard 0.100" headers.
