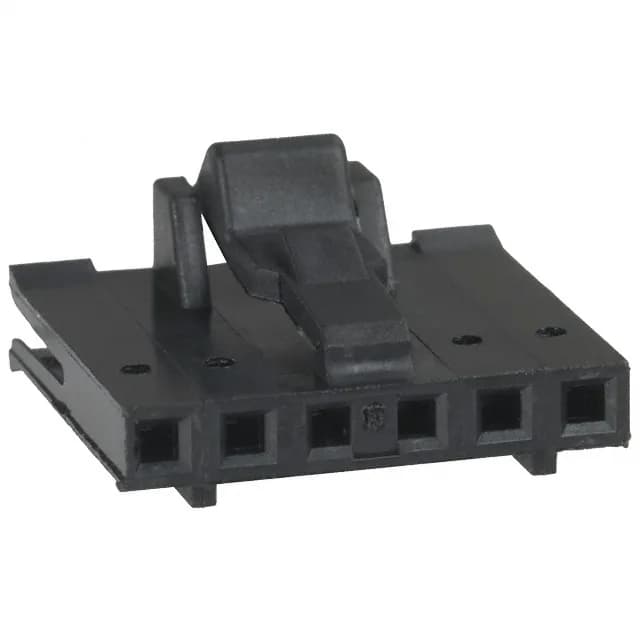

TE Connectivity AMP Connectors 487526-5, FFC receptacle housing, 6 positions, 0.100" (2.54 mm) pitch, 1.5 A, 300 V, latch lock, UL94 V-0 black thermoplastic, contacts not included.
| Parameter | Value |
|---|---|
| Connector type | Housing for Female Contacts |
| Flat flex type | FFC |
| Voltage rating | 300 V |
| Current rating | 1.5 A |
| Operating temperature | -65°C ~ 105°C |
| Housing color | Black |
| Housing material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Note | Contacts Not Included |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Rows | 1 |
| Locking feature | Latch Lock |
| FFC, FCB thickness | 0.05-0.13mm |
| Positions | 6 |
The 487526-5: At 6 positions, this housing suits low-circuit-count signal runs where a smaller-pitch connector would add unnecessary density.
Sourced through independent distribution channels. No stock-holding claim; each RFQ is handled individually.
487526-5 is available through independent distribution. Submit an RFQ for current availability and pricing — no stock-holding claim, each order is sourced per your BOM quantity.
No. You must order the matching female FFC terminals separately.
The pitch is 0.100" (2.54 mm), single-row, 6 positions. This is a standard legacy FFC spacing.
