TE Connectivity AMP Connectors 487545-1 — FFC / FPC Housings

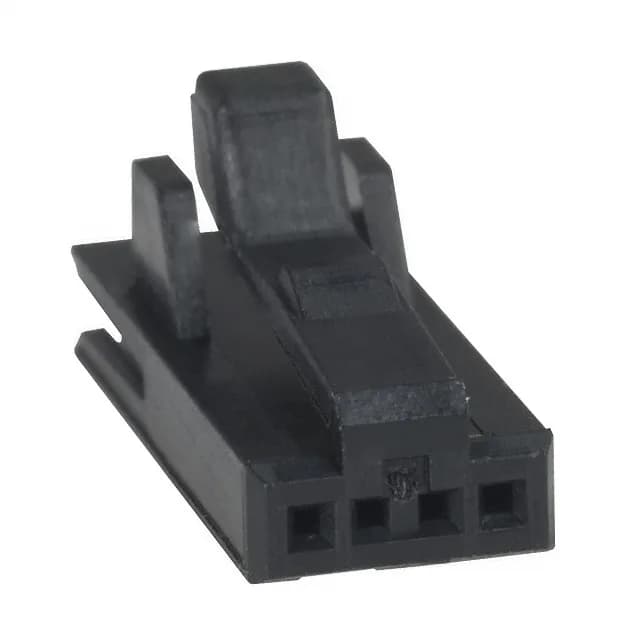

TE Connectivity 487545-1 FFC Housing 4 Pos 1.27mm Latch Lock

MPN487545-1
Active

TE Connectivity AMP Connectors AMPMODU System 50, FFC receptacle housing for female contacts, 4 positions, 0.050" (1.27mm) pitch, 1 row, latch lock, UL94 V-0, -55°C to 105°C, 1.5 A, 100 V, contacts not included.

$1.2100Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 487545-1 datasheet (PDF)
RoHSRoHS Compliant
SeriesAMPMODU System 50
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

487545-1 specifications
ParameterValue
SeriesAMPMODU System 50
Connector typeHousing for Female Contacts
Flat flex typeFFC
Voltage rating100 V
Current rating1.5 A
Operating temperature-55°C ~ 105°C
Housing colorBlack
Housing materialPolyester
Material flammability ratingUL94 V-0
NoteContacts Not Included
Pitch0.050\" (1.27mm)
PackageBulk
Rows1
Locking featureLatch Lock
FFC, FCB thickness0.05-0.08mm
Positions4

Product details

4-Position FFC Housing – 1.27 mm Pitch, Latch Lock

487545-1 is a 4-position FFC receptacle housing from the AMPMODU System 50 series, built for single-row FFC terminations at 0.050" (1.27mm) pitch. The housing carries a latch lock that secures the FFC against vibration without a secondary retainer. Rated 1.5 A per contact at 100 V, with an operating range of -55°C to 105°C and a UL94 V-0 polyester body.

The 4-position count and 1.27 mm pitch make it a direct fit for low-circuit-count signal jumpers or power-on-signal lines where 1.5 A per contact is sufficient.

Frequently asked questions

Does 487545-1 include contacts?

No. The listing explicitly states Contacts Not Included. You must order the matching crimp terminals separately for the FFC thickness range of 0.05-0.08mm.

What is the pitch of TE Connectivity 487545-1?

The pitch is 0.050" (1.27mm), single row, 4 positions.

What locking feature does 487545-1 have?

A latch lock holds the FFC in place — no secondary retainer needed for vibration resistance.

Is 487545-1 RoHS compliant?

Yes, RoHS Compliant per the listing.
