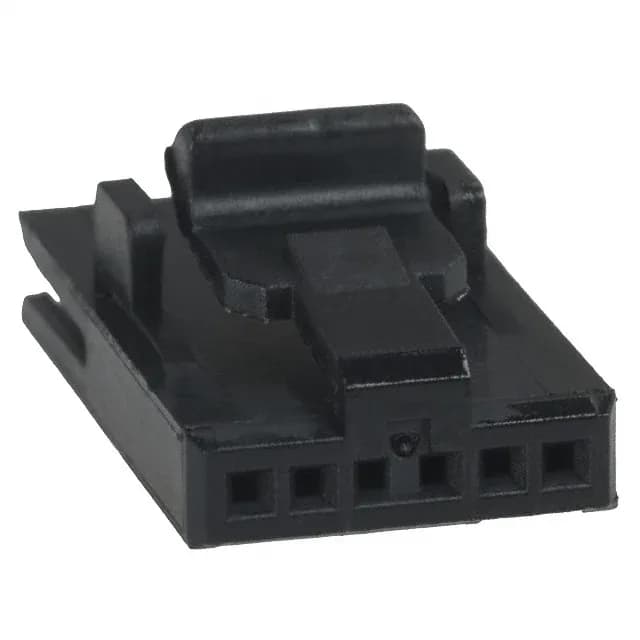

TE Connectivity AMP Connectors AMPMODU System 50, 487545-3, FFC receptacle housing, 6 positions, 0.050" (1.27 mm) pitch, single row, latch lock, black polyester UL94 V-0, -55°C to 105°C, 1.5 A, 100 V, contacts not included.
| Parameter | Value |
|---|---|
| Series | AMPMODU System 50 |
| Connector type | Housing for Female Contacts |
| Flat flex type | FFC |
| Voltage rating | 100 V |
| Current rating | 1.5 A |
| Operating temperature | -55°C ~ 105°C |
| Housing color | Black |
| Housing material | Polyester |
| Material flammability rating | UL94 V-0 |
| Note | Contacts Not Included |
| Pitch | 0.050\" (1.27mm) |
| Package | Bulk |
| Rows | 1 |
| Locking feature | Latch Lock |
| FFC, FCB thickness | 0.05-0.08mm |
| Positions | 6 |
The 487545-3 is a 6-position FFC receptacle housing from the AMPMODU System 50 series. The polyester housing carries UL94 V-0 flammability rating.
The 0.050" (1.27 mm) pitch is the standard AMPMODU System 50 spacing.
This housing does not include contacts, so buyers need to know which contacts to order separately.
