Overview

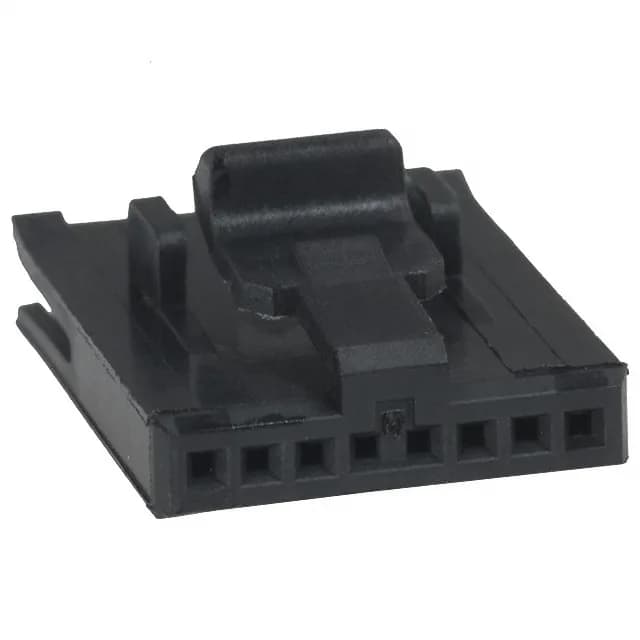

The 487545-5 is the 8-position member of TE Connectivity's AMPMODU System 50 FFC receptacle housing line. Rated 1.5 A and 100 V, it accepts FFC cables 0.05-0.08 mm thick at a 1.27 mm pitch, with a latch lock for retention.
Series & positions
Within the AMPMODU System 50 series, the 487545-5 carries 8 positions with a latch lock, versus the 6-position 487544-3 with a detent lock — the pitch, current rating, and housing material are shared across the series, so match the position count and lock type to the circuit count and retention requirement.
