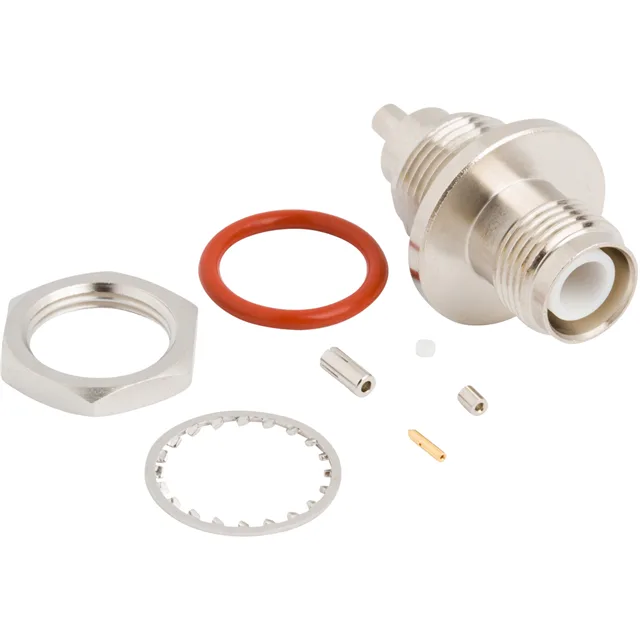

031-6900 — Amphenol product photo
Amphenol

031-6900 RP-TNC Jack, Male Pin, 50 Ohm, 6 GHz, IP67

MPN031-6900
Active

Amphenol RF RP-TNC jack, male pin, bulkhead rear-mount, 50 Ohm, DC to 6 GHz, IP67, crimp/solder termination for 1.13 mm coaxial cable, nickel-plated brass body.

$13.6700Ref. price · indicative, final on quote
031-6900 datasheet
StockIn Stock (16)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

031-6900 Technical Specifications
ParameterValue
Mounting typePanel Mount
Connector typeJack, Male Pin
Fastening typeThreaded
Frequency - max6 GHz
Ingress protectionIP67 - Dust Tight, Waterproof
Mounting featureBulkhead - Rear Side Nut
Cable group1.13mm Coaxial Cable
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialPhosphor Bronze
PackageBag
Impedance50Ohm
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingGold

Product details

Reverse-Polarity TNC for 1.13 mm Coax

The Amphenol 031-6900 is an RP-TNC jack with a male center pin — the reverse-polarity variant of the standard TNC interface. It is designed specifically for 1.13 mm coaxial cable, terminated by crimping the shield and soldering the center conductor. The bulkhead rear-side nut mounts through a panel, and the threaded coupling nut provides a vibration-resistant mate.

IP67 Sealing and Temperature Range

Gold-plated phosphor bronze center contact resists corrosion through 500 mating cycles.

This connector is built for 1.13 mm coaxial cable — the crimp barrel and center-contact solder cup are sized to that diameter. Using a different cable gauge will not achieve the rated 50 Ohm impedance or the IP67 seal. The shield is crimped; the center conductor is soldered.

Frequently asked questions

Does 031-6900 work with 1.13 mm coaxial cable?

Yes, the 031-6900 is designed for 1.13 mm coaxial cable. The shield is crimped and the center conductor is soldered to match that cable diameter.
