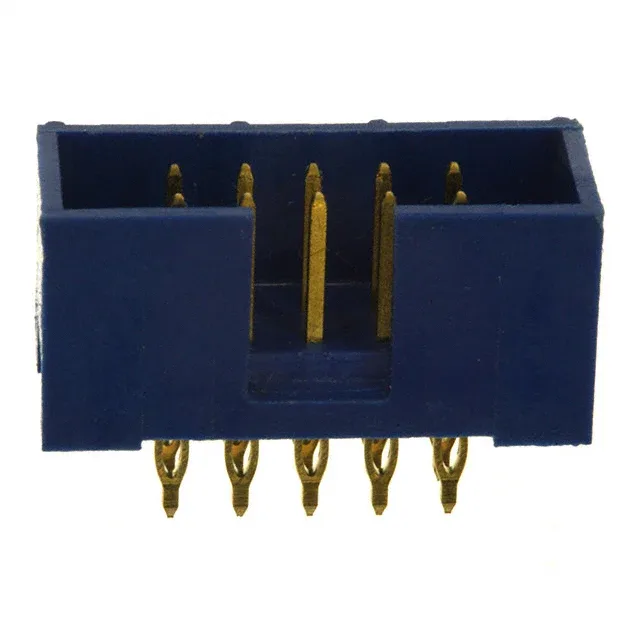

10073456-001LF — Amphenol product photo
Amphenol

10073456-001LF Amphenol ICC Quickie Header 10 Pos 2.54mm

MPN10073456-001LF
Active

Amphenol ICC (FCI) Quickie™ series, 10073456-001LF, board-to-cable/wire header, 10 circuits, 0.100" (2.54mm) pitch, shrouded 4-wall, through-hole, press-fit/solder termination, gold-plated mating contacts.

$4.5400Ref. price · indicative, final on quote
10073456-001LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

10073456-001LF Technical Specifications
ParameterValue
SeriesQuickie™
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typePush-Pull
Contact materialPhosphor Bronze
Insulation colorBlue
Insulation height0.365\" (9.27mm)
Insulation materialPolyester, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationPress-Fit, Solder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions10
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.160\" (4.06mm)
Overall contact length0.510\" (12.95mm)
Contact finish - matingGold
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - post40.0µin (1.02µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Gold Mating Face and Press-Fit Termination

The post side is tin-plated at 40 µinch (1.02 µm), compatible with solder or press-fit into plated through-holes. The through-hole mount with press-fit option suits high-reliability backplane or I/O card applications where solder rework is undesirable.

Sourced through independent distribution; quantities are confirmed and quoted per RFQ against your BOM line.

Keying Slot and Housing Details

The header includes a keying slot that prevents mis-mating with non-keyed receptacles — a practical safeguard in multi-connector panels.

Frequently asked questions

Where can I buy 10073456-001LF and how is it quoted?

10073456-001LF is sourced through independent distribution.

What is the pitch and position count of 10073456-001LF?

The pitch is 0.100" (2.54mm) with 10 positions in a dual-row layout. Row spacing is also 0.100" (2.54mm), giving a compact footprint for standard 0.100" grid boards.

Does 10073456-001LF have a keying slot?

Yes, the header includes a keying slot that prevents mismating with non-keyed receptacles — useful in multi-connector panels where incorrect mating could damage pins or circuits.
