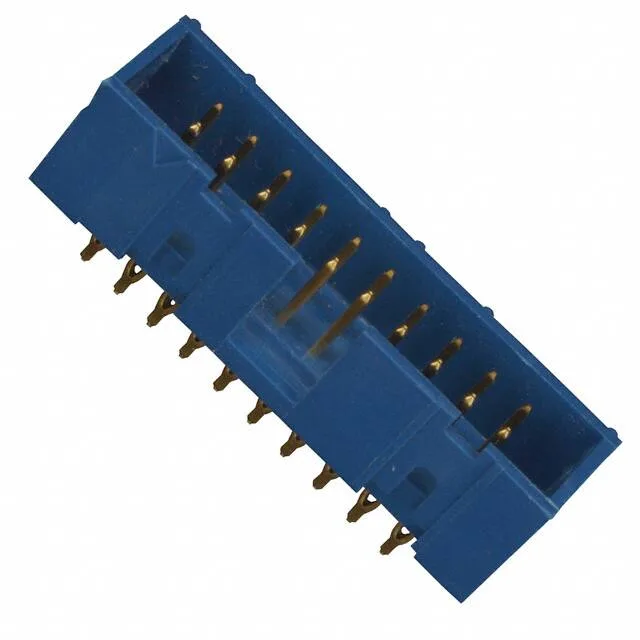

10073456-019LF — Amphenol product photo
Amphenol

10073456-019LF Amphenol ICC Quickie 20-Pin Header 0.100"

MPN10073456-019LF
Active

Amphenol ICC (FCI) Quickie™ series, 10073456-019LF, 20-position, 0.100" (2.54mm) pitch, shrouded 4-wall header, male pin, through-hole, press-fit/solder termination, gold mating contacts, blue insulation, UL94 V-0, RoHS compliant.

$5.8100Ref. price · indicative, final on quote
10073456-019LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

10073456-019LF Technical Specifications
ParameterValue
SeriesQuickie™
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typePush-Pull
Contact materialPhosphor Bronze
Insulation colorBlue
Insulation height0.365\" (9.27mm)
Insulation materialPolyester, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationPress-Fit, Solder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions20
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.160\" (4.06mm)
Overall contact length0.510\" (12.95mm)
Contact finish - matingGold
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - post40.0µin (1.02µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

20-Position 0.100" Pitch Shrouded Header

The 10073456-019LF: Push-pull fastening secures the connection without tools — a practical choice for harness assemblies that need quick disconnect. The post tails are tin-plated (40.0µin) for reliable solder wetting.

Press-Fit and Solder Termination Options

The termination is listed as Press-Fit, Solder — the through-hole tails can be press-fit into plated through-holes for solderless backplane assembly, or wave-soldered for standard PCB attachment. In a board-to-cable application, the receptacle housing depth must clear the full pin length — check the mating half's insulation height against the 0.365" (9.27mm) header body.

No official second-source cross-reference from the manufacturer.

Frequently asked questions

What is the mating connector for the 10073456-019LF?

The receptacle must have a keying slot to align with the header's keying feature.
