30-Position Dual-Row at 0.100" Pitch — Footprint and Mating Half
The 10073456-038LF: The row spacing is also 0.100", so the total footprint is a 2×15 grid that matches the common 30-pin IDC socket pattern.
GXT™ Gold Mating Surface — 30 µinch for Repeated Connect Cycles

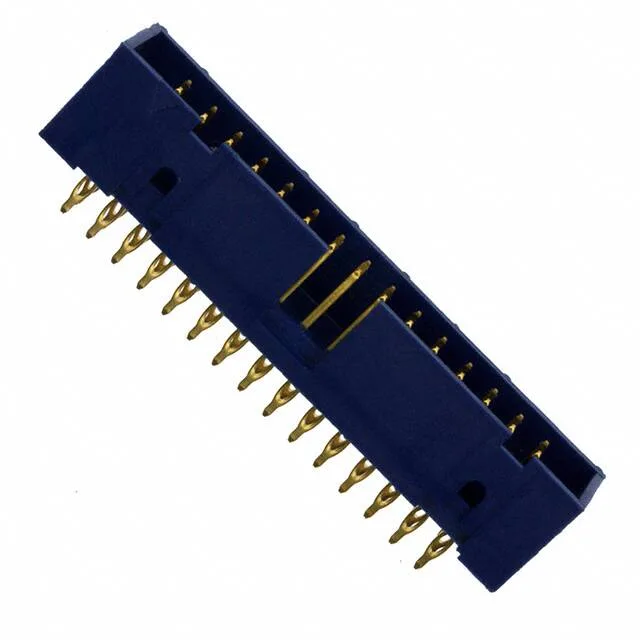

Shrouded 4-Wall with Keying Slot — Mis-Mate Protection
The keying slot in the shroud ensures the mating receptacle can only be inserted in one orientation — no reversed polarity or offset connection. Push-pull fastening means the mating half latches without tools; the shroud walls guide the receptacle into alignment.
Board-to-Cable/Wire Style — Termination and Mounting
This is a board-to-cable/wire header — it mounts on the PCB via through-hole and mates with a discrete-wire or ribbon-cable receptacle. The termination is listed as press-fit, solder, meaning the solder tails are press-fit compliant pins that can be wave-soldered or hand-soldered after insertion. This stack-up fits standard 1.6mm PCBs with enough tail protrusion for reliable solder fillet formation.
