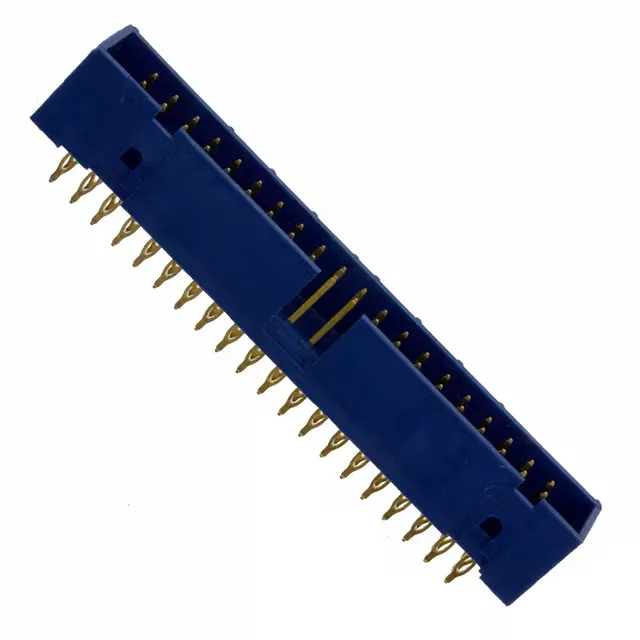

10073456-049LF Amphenol ICC Quickie™ 40-Pin Header 0.100"

MPN10073456-049LF
Active

Amphenol ICC (FCI) Quickie™, Board to Cable/Wire, Header, Male Pin, 40 Positions, 2 Row, 0.100" (2.54mm) Pitch, Through Hole, Press-Fit/Solder, Shrouded - 4 Wall, Gold Mating, Tin Post, Tray, RoHS

$8.4000Ref. price · indicative, final on quote
10073456-049LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

10073456-049LF Technical Specifications
ParameterValue
SeriesQuickie™
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typePush-Pull
Contact materialPhosphor Bronze
Insulation colorBlue
Insulation height0.365\" (9.27mm)
Insulation materialPolyester, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationPress-Fit, Solder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions40
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.160\" (4.06mm)
Overall contact length0.510\" (12.95mm)
Contact finish - matingGold
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - post40.0µin (1.02µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

40-Position Shrouded Header for Board-to-Cable Harnesses

The 10073456-049LF is a 40-position, 2-row, 0.100" (2.54mm) pitch shrouded header from the Amphenol ICC (FCI) Quickie™ series. It mates with a standard 40-position IDC ribbon cable socket or discrete-wire receptacle, giving you a reliable board-to-cable interconnect for signal and low-power lines.

Pitch, Positions, and Board Footprint

At 40 positions, this header fills the full 2-row footprint of the Quickie™ series.

Through-hole mounting with a 4-wall shroud means the header is mechanically robust against cable strain; the push-pull fastening type allows tool-less disconnection.

Frequently asked questions

What is the mating connector for 10073456-049LF?

This is a male pin header. The Quickie™ series includes matching receptacles; confirm the keying slot alignment.

What is the closest functional alternative to 10073456-049LF?

The 20-position sibling 10073456-019LF shares the same pitch, row spacing, plating, and shrouding but halves the circuit count. For a 40-position requirement, this part is the direct fit.

Where can I buy 10073456-049LF?

Sourced per RFQ against the BOM quantity; availability and current pricing confirmed at quote time.
