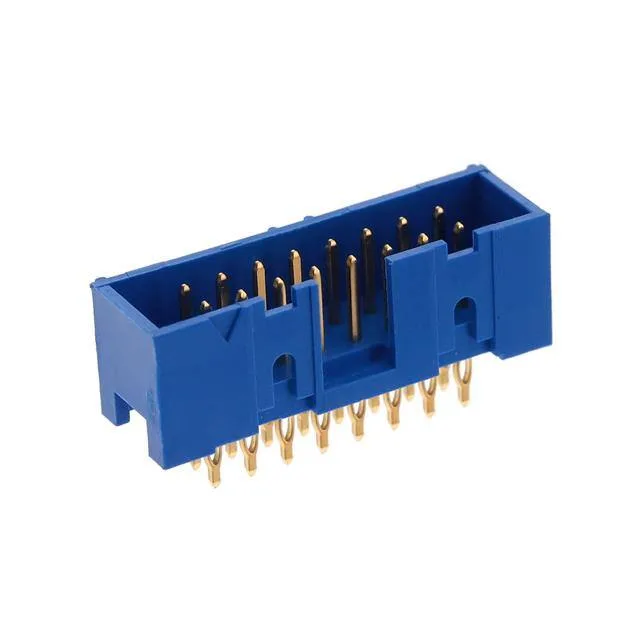

10073456-013LF Amphenol ICC Quickie™ 16-Pin Header 2.54mm

MPN10073456-013LF
Active

Amphenol ICC (FCI) Quickie™ series, 10073456-013LF, 16-position, 2-row, 0.100" (2.54mm) pitch male header, shrouded 4-wall, gold mating finish, press-fit termination, through-hole mounting, tray package.

$2.9700Ref. price · indicative, final on quote
10073456-013LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

10073456-013LF Technical Specifications
ParameterValue
SeriesQuickie™
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typePush-Pull
Contact materialPhosphor Bronze
Insulation colorBlue
Insulation height0.365\" (9.27mm)
Insulation materialPolyester, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageTray
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationPress-Fit, Solder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions16
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.160\" (4.06mm)
Overall contact length0.510\" (12.95mm)
Contact finish - matingGold
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - post40.0µin (1.02µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Board Fit and Contact Specs

The 10073456-013LF: The 0.230" (5.84mm) mating pin length engages fully with the receptacle contact beam.

Press-fit termination with through-hole mounting — the press-fit tail compresses into the plated through-hole without solder, common in backplane and high-reliability assemblies where rework or field replacement is anticipated. The 0.160" (4.06mm) post length clears standard board thicknesses. The keying slot prevents mismating with non-keyed counterparts.

Position Count Alternatives

The same 10073456 base series offers 10-position (10073456-001LF), 20-position (10073456-019LF), and 40-position (10073456-049LF) variants — all sharing the same 2.54mm pitch, gold plating, and press-fit termination. The 16-position version fills a mid-density BOM slot where 10 is too few and 20 is overkill.
