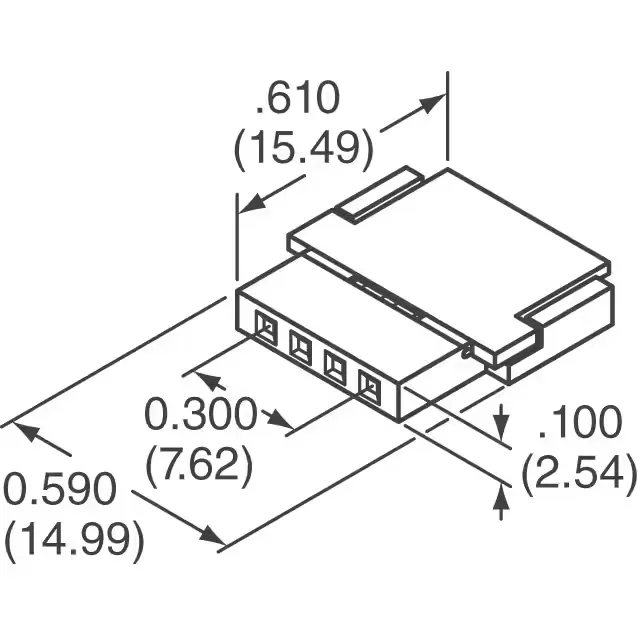

65801-004LF — Amphenol product photo
Amphenol

65801-004LF Amphenol ICC (FCI) Clincher™ FFC/FPC Receptacle

MPN65801-004LF
Active

Amphenol ICC (FCI) Clincher™ FFC/FPC receptacle, 4 positions, 0.100" (2.54 mm) pitch, 2 A, 500 V, tin-plated copper nickel alloy contacts, ZIF actuation, slide lock, free-hanging mount, UL94 V-0 thermoplastic housing, -65°C to 105°C.

$1.2200Ref. price · indicative, final on quote
65801-004LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

65801-004LF Technical Specifications
ParameterValue
SeriesClincher™
Mounting typeFree Hanging (In-Line)
Cable end typeStraight, Tapered
Flat flex typeFFC, FPC
Connector (Contact type)Receptacle
Voltage rating500V
Current rating2A
Operating temperature-65°C~105°C
Housing colorBlue
Actuator colorBlack
Contact materialCopper Nickel Alloy
Housing materialThermoplastic
Material flammability ratingUL94 V-0
Pitch0.100\" (2.54mm)
PackageTray
FeaturesSolder Retention, Zero Insertion Force (ZIF)
TerminationSolder
Mating cycles100
Contact finishTin
Locking featureSlide Lock
FFC, FCB thickness0.30mm, 0.33mm
Positions4
Contact finish thickness100.0µin (2.54µm)

Product details

4-Position FFC/FPC Receptacle at 2.54 mm Pitch

The 65801-004LF is a 4-position FFC/FPC receptacle from the Amphenol ICC (FCI) Clincher™ series. The ZIF (Zero Insertion Force) mechanism with a slide lock reduces wear on the FFC during insertion and holds the cable securely under vibration. Rated at 2 A per contact and 500 V, the connector handles moderate power and signal duty. The free-hanging (in-line) mount and solder termination simplify cable-to-board or cable-to-cable integration without panel cutouts.

Frequently asked questions

What is the difference between 65801-004LF and 65801-003LF?

The 65801-003LF is a 3-position version of the same Clincher series, with identical 2.54 mm pitch, 2 A current, 500 V rating, tin contacts, ZIF, and free-hanging mount.

What cable thickness does 65801-004LF accept?

The connector accepts FFC or FPC with a thickness of 0.30 mm or 0.33 mm. The cable end type should be straight or tapered for proper insertion into the ZIF mechanism.
