ZIF slide-lock, free-hanging FFC/FPC receptacle

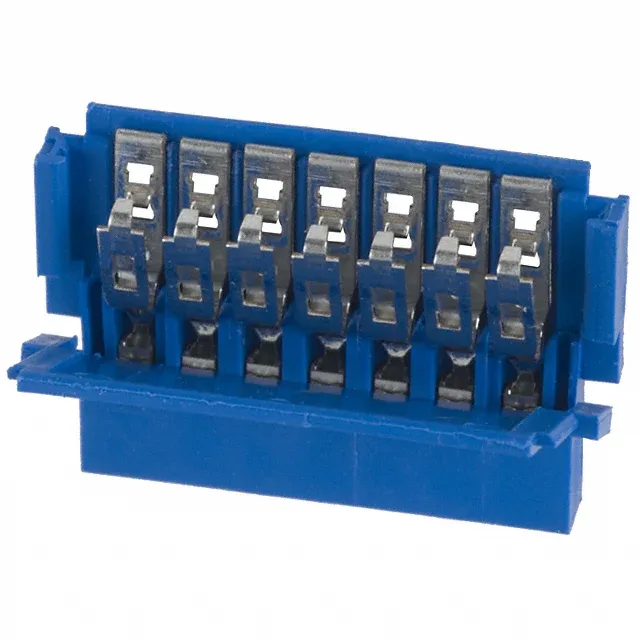

The 65801-007LF is the 7-position member of Amphenol ICC (FCI)'s Clincher FFC/FPC receptacle line, terminated by solder and actuated by a Zero Insertion Force (ZIF) slide lock.
Amphenol ICC (FCI) Clincher FFC/FPC receptacle, order code 65801-007LF, 7 positions, 0.100" (2.54mm) pitch, 2 A, 500 V, tin-plated contacts, free-hanging in-line, ZIF slide-lock actuation, solder termination.
$1.5800Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | Clincher™ |
| Mounting type | Free Hanging (In-Line) |
| Cable end type | Notched |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Receptacle |
| Voltage rating | 500V |
| Current rating | 2A |
| Operating temperature | -65°C~105°C |
| Housing color | Blue |
| Actuator color | Gray |
| Contact material | Copper Nickel Alloy |
| Housing material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.100\" (2.54mm) |
| Package | Tray |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Termination | Solder |
| Mating cycles | 100 |
| Contact finish | Tin |
| Locking feature | Slide Lock |
| FFC, FCB thickness | 0.33mm |
| Positions | 7 |
| Contact finish thickness | 100.0µin (2.54µm) |
Product details
Frequently asked questions
Will 65801-007LF drop into a panel specified around 65801-005LF without rewiring?
The board footprint per position is identical, so the 7-position part fits the same cable and mating interface but occupies two additional circuit positions.
