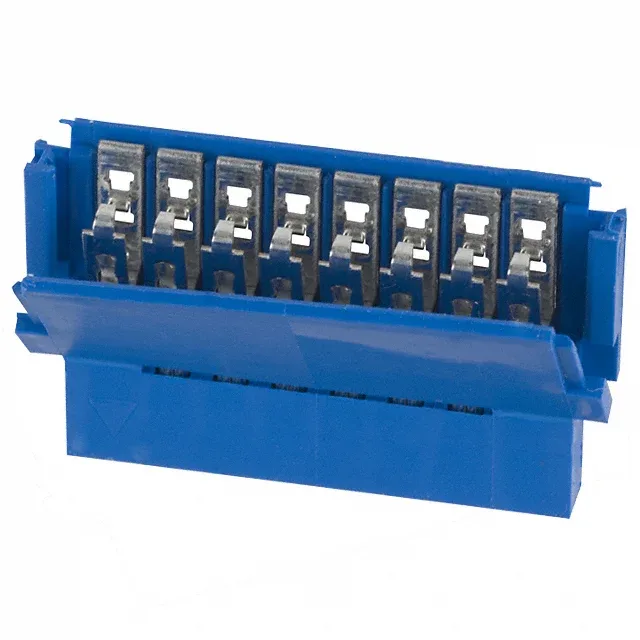

65801-008LF — Amphenol product photo
Amphenol

65801-008LF FFC FPC Receptacle, 8 Pos, 0.100" Pitch, ZIF

MPN65801-008LF
Active

Amphenol ICC (FCI) Clincher™, 65801-008LF — 8-position FFC/FPC receptacle, 0.100" (2.54mm) pitch, ZIF slide-lock actuation, tin-plated copper nickel alloy contacts, 2 A per circuit, 500 V rating, free-hanging in-line mount.

$1.8200Ref. price · indicative, final on quote
65801-008LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

65801-008LF Technical Specifications
ParameterValue
SeriesClincher™
Mounting typeFree Hanging (In-Line)
Cable end typeStraight, Tapered
Flat flex typeFFC, FPC
Connector (Contact type)Receptacle
Voltage rating500V
Current rating2A
Operating temperature-65°C~105°C
Housing colorBlue
Actuator colorBlack
Contact materialCopper Nickel Alloy
Housing materialThermoplastic
Material flammability ratingUL94 V-0
Pitch0.100\" (2.54mm)
PackageTray
FeaturesSolder Retention, Zero Insertion Force (ZIF)
TerminationSolder
Mating cycles100
Contact finishTin
Locking featureSlide Lock
FFC, FCB thickness0.30mm, 0.33mm
Positions8
Contact finish thickness100.0µin (2.54µm)

Product details

8-Position Clincher ZIF — Free-Hanging FFC Termination

The 65801-008LF: This is an 8-position FFC/FPC receptacle from the Amphenol ICC (FCI) Clincher™ series, built for 0.100" (2.54mm) pitch flat flex cable. The ZIF (Zero Insertion Force) slide-lock actuator accepts FFC thicknesses of 0.30mm or 0.33mm — the straight or tapered cable end inserts without force, then the slide lock clamps the contacts against the flex pads.

Position Count Options Across the Clincher Line

The 65801-008LF sits between the 4-position (65801-004LF) and 9-position (65801-009LF) variants in the same Clincher series.

Active lifecycle status. RoHS compliant.

Frequently asked questions

What is the closest functional alternative to 65801-008LF?

The 65801-009LF is the 9-position sibling in the same Clincher series — same pitch, current rating, ZIF slide lock, tin contacts, and free-hanging mount. If your BOM requires a different circuit count, the 4-position (65801-004LF) or 3-position (65801-003LF) variants also match form, fit, and function.
