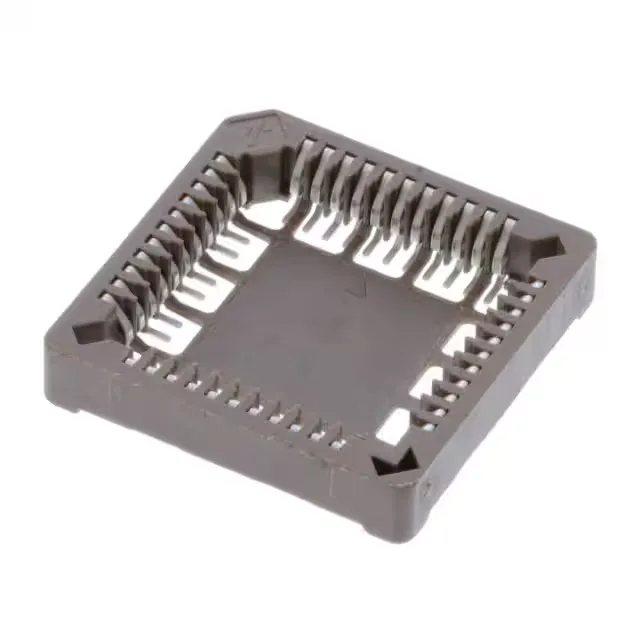

69802-444LF — Amphenol product photo
Amphenol

69802-444LF PLCC Socket 44-Pin Tin-Lead SMT Amphenol ICC

MPN69802-444LF
Active

Amphenol ICC (FCI) 69802-444LF, 44-position PLCC socket, 0.050" (1.27mm) pitch, open frame, tin-lead contacts, surface mount, PPS housing UL94 V-0.

$2.2200Ref. price · indicative, final on quote
69802-444LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

69802-444LF Technical Specifications
ParameterValue
TypePLCC
Series69802
Mounting typeSurface Mount
Housing materialPolyphenylene Sulfide (PPS), Glass Filled
Contact material - postPhosphor Bronze
Contact material - matingPhosphor Bronze
Material flammability ratingUL94 V-0
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesOpen Frame
TerminationSolder
Pitch - post0.050\" (1.27mm)
Pitch0.050\" (1.27mm)
Contact finish - postTin-Lead
Contact finish - matingTin-Lead
Termination post length0.060\" (1.52mm)
Contact finish thickness - post150.0µin (3.81µm)
Contact finish thickness - mating150.0µin (3.81µm)
Number of positions or pins44 (4 x 11)

Product details

Footprint Fit for a 44-Pin PLCC Device

The 69802-444LF is a 44-position PLCC socket arranged in a 4 x 11 grid — the standard footprint for 44-pin PLCC packages. The 0.050" (1.27mm) pitch on both the post and mating side matches the device lead spacing exactly, so no board layout adjustment is needed when swapping between this socket and a direct-solder PLCC. Open-frame construction means the PCB pads under the device are visible after soldering — useful for AOI inspection and for rework when a device needs replacement.

Frequently asked questions

Is the 69802-444LF RoHS compliant?

Yes, the 69802-444LF is listed as RoHS Compliant. Note that the contact finish is tin-lead, which is RoHS exempt under certain categories — confirm your assembly's RoHS exemption requirements.

What is the difference between 69802-444LF and 69802-044LF?

Both are 44-position PLCC sockets with the same 0.050" pitch and PPS housing. The 69802-444LF uses an open frame and tin-lead contacts, while the 69802-044LF uses a closed frame and pure tin contacts.
