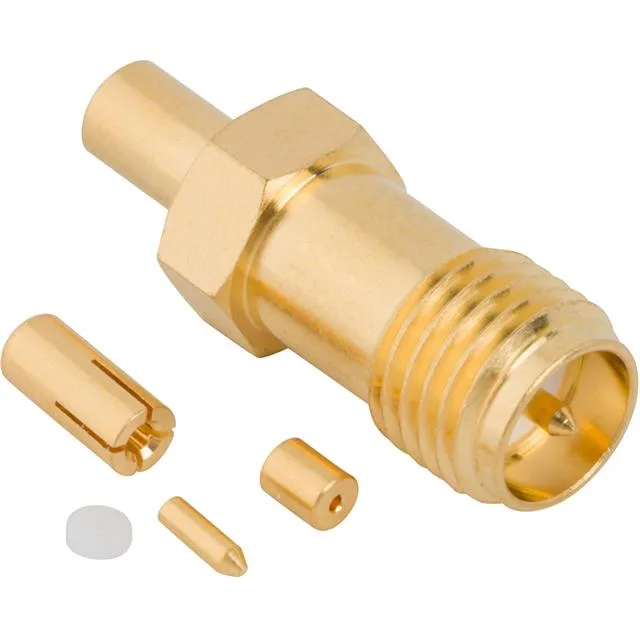

901-10774 — Amphenol product photo
Amphenol

Amphenol RF 901-10774 RP-SMA Jack, 50 Ohm, 6 GHz

MPN901-10774
Active

Amphenol RF RP-SMA jack, male pin, 50 Ohm, 6 GHz, 335 V, 500 mating cycles, crimp/solder termination, for 0.81mm OD coaxial cable, gold-plated brass body.

$13.8200Ref. price · indicative, final on quote
901-10774 datasheet
StockIn Stock (15)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

901-10774 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typeJack, Male Pin
Fastening typeThreaded
Voltage rating335 V
Frequency - max6 GHz
Cable group0.81mm OD Coaxial Cable
Operating temperature-65°C~165°C
Body materialBrass
Housing colorGold
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBag
Impedance50Ohm
Body finishGold
Mating cycles500
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingGold

Product details

Cable Termination and Shield

Voltage and Frequency Headroom

Rated 335 V and 6 GHz max, the connector's voltage rating is generous for the cable size — the limiting factor in most installations will be the cable's own breakdown voltage, not the connector interface. The 6 GHz ceiling covers 5 GHz Wi-Fi bands with margin; for higher-frequency work, the 901-10786 (7.1 GHz, plug, female socket) or the 901-10754 (SMA jack, female socket) extend the range, though both use different cable groups (1.37mm and 1.13mm respectively).

Frequently asked questions

What is the impedance of 901-10774?

50 Ohm nominal, standard for RP-SMA interfaces.

What cable group does 901-10774 fit?

0.81mm OD coaxial cable. The crimp shield and solder centre contact are sized for that diameter.

What is the mating cycle rating of 901-10774?

500 mating cycles, supported by the gold-plated beryllium copper centre contact and gold body finish.

What alternatives or equivalents exist for 901-10774?

The 901-10768 is the same RP-SMA jack, male pin, but with a bulkhead front-side nut mounting instead of free-hanging. For a plug (female socket) version on 1.37mm coax, see the 901-10786.
