Amphenol — Card-Edge Connectors

Amphenol Card-Edge Connectors — 33 part numbers with specifications and datasheets. Filter by key specs and request a quote on IC Source Direct.

33 products

Product category

All Pin Headers, Sockets & Housings37031 Pin Headers1724 RF / Coaxial Connectors1455 FFC / FPC & Ribbon Connectors1203 USB, Type-C & HDMI Connectors832 FFC / FPC Cable Assemblies565 RF Cable Assemblies550 Female Socket Headers387 Circular Connectors346 Header Plugs & Sockets342 USB / HDMI Cable Assemblies298 Wire-to-Board Connectors234 Crimp Contacts209 Connector Housings189 Crimp Contacts & Pins171 D-Sub & D-Shaped Connectors146 Circular Cable Assemblies131 Modular / RJ Connectors99 Audio Connectors95 Terminal Blocks75 D-Sub Cable Assemblies56 Modular Jacks (RJ)55 Board-to-Board Connectors51 Mezzanine & Stacking Connectors49 Pluggable Terminal Blocks40 Pluggable Assemblies38 Multi-Purpose Circular38 Card-Edge Connectors33 Circular Accessories26 Panel-Mount & In-Line Circular24 Specialty Circular19 IC & Device Sockets18 FFC / FPC Housings15 Spring-Loaded Contacts13 Wire-to-Board Headers11 D-Sub Backshells & Hoods9 Connector Accessories7 Backplane Connectors4 Wire-to-Wire Connectors2 Power Entry Modules1 PCB Single-Post Pins1 LED Lighting Connectors1

Positions

Features

Number of Positions/Bay/Row

Mounting Type

Pitch

Series

MPN	Price (est.)	Actions	Positions	Features	Number of Positions/Bay/Row	Mounting Type	Pitch	Series	Card Type	Contact Finish Thickness	Material - Insulation	Operating temperature	Package	Card Thickness
10131758-005RLF	RFQ	Details	67	-	-	Surface Mount, Right Angle	0.020\" (0.50mm)	HPCE®	M.2 (NGFF) Mini Card	30.0µin (0.76µm)	Thermoplastic	-40°C ~ 80°C	Tape & Reel (TR)	0.031\" (0.79mm)

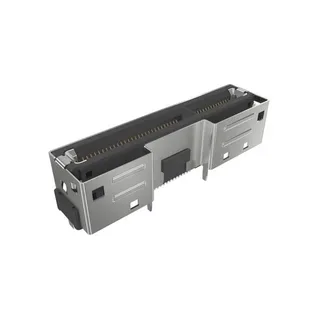

ME1014013401101	RFQ	Details	140	-	28; 14; 28	Board Edge, Straddle Mount	0.024\" (0.60mm)	Mini Cool Edge 0.60mm	Non Specified - Dual Edge	30.0µin (0.76µm)	Thermoplastic	-55°C ~ 105°C	Tray	0.062\" (1.57mm)
10018784-10201TLF	RFQ	Details	64	-	11; 21	Through Hole	0.039\" (1.00mm)	HPCE®	PCI Express™	Flash	Polyamide (PA), Nylon, Glass Filled	-55°C ~ 85°C	Tray	0.062\" (1.57mm)
10131758-004RLF	RFQ	Details	67	-	-	Surface Mount, Right Angle	0.020\" (0.50mm)	HPCE®	M.2 (NGFF) Mini Card	15.0µin (0.38µm)	Thermoplastic	-40°C ~ 80°C	Tape & Reel (TR)	0.031\" (0.79mm)
MDT180M03001	RFQ	Details	67	-	-	Surface Mount, Right Angle	0.020\" (0.50mm)	M.2	M.2 (NGFF) Mini Card	Flash	Liquid Crystal Polymer (LCP)	-40°C ~ 80°C	Tape & Reel (TR) Cut Tape (CT)	-
10061913-101CLF	RFQ	Details	64	-	11; 21	Surface Mount	0.039\" (1.00mm)	-	PCI Express™	30.0µin (0.76µm)	Polyamide (PA), Nylon, Glass Filled	-55°C ~ 85°C	Tray	0.062\" (1.57mm)
10067847-011RLF	RFQ	Details	11 (9 + 2)	-	-	Surface Mount, Right Angle	-	-	Secure Digital - SD	50.0µin (1.27µm)	-	-	Tape & Reel (TR) Cut Tape (CT)	-
10139595-110T0LF	RFQ	Details	280	-	-	Surface Mount	0.039\" (1.00mm)	-	PCI Express™	30.0µin (0.76µm)	Thermoplastic, Glass Filled	-55°C ~ 85°C	Tray	0.062\" (1.57mm)
ME10168434A0601	RFQ	Details	168	-	14; 28; 14; 28	Board Edge, Straddle Mount	0.024\" (0.60mm)	Mini Cool Edge 0.60mm	Non Specified - Dual Edge	30.0µin (0.76µm)	Thermoplastic	-40°C ~ 85°C	Tray	0.062\" (1.57mm)
ME1022410103011	RFQ	Details	224	-	28; 28; 28; 28	Surface Mount	0.024\" (0.60mm)	Mini Cool Edge 0.60mm	Non Specified - Dual Edge	30.0µin (0.76µm)	Thermoplastic	-55°C ~ 105°C	Tray	0.062\" (1.57mm)
MET008431401101	RFQ	Details	84	-	28; 14	Board Edge, Straddle Mount	0.024\" (0.60mm)	Mini Cool Edge 0.60mm	Non Specified - Dual Edge	30.0µin (0.76µm)	Thermoplastic	-55°C ~ 105°C	Tray	0.062\" (1.57mm)

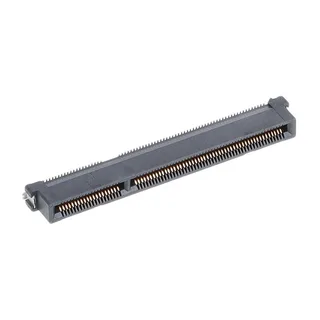

SE1014023111111	RFQ	Details	140	-	-	Surface Mount	0.026\" (0.65mm)	Slim Cool Edge 0.65mm	Non Specified - Dual Edge	30.0µin (0.76µm)	Thermoplastic	-55°C ~ 105°C	Tape & Reel (TR) Cut Tape (CT)	0.063\" (1.60mm)
10018784-10200TLF	RFQ	Details	36	-	-	Through Hole	0.039\" (1.00mm)	HPCE®	PCI Express™	Flash	Polyamide (PA), Nylon, Glass Filled	-55°C ~ 85°C	Tray	0.062\" (1.57mm)
ME1005610201011	RFQ	Details	56	-	28	Surface Mount, Right Angle	0.024\" (0.60mm)	Mini Cool Edge 0.60mm	Non Specified - Dual Edge	30.0µin (0.76µm)	Thermoplastic	-55°C ~ 105°C	Tape & Reel (TR) Cut Tape (CT)	0.062\" (1.57mm)
10146065-113Q0LF	RFQ	Details	164	-	-	Surface Mount	0.039\" (1.00mm)	-	PCI Express™	30.0µin (0.76µm)	Liquid Crystal Polymer (LCP)	-55°C ~ 105°C	Tray	0.062\" (1.57mm)

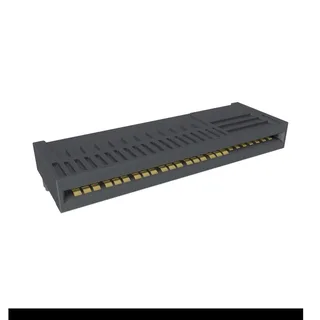

HPG36P14SRT051T-02	RFQ	Details	50 (14 + 36 Power)	-	25	Through Hole, Right Angle	0.100\" (2.54mm)	EnergyEdge™ X-treme	Non Specified - Dual Edge	30.0µin (0.76µm)	Thermoplastic	-55°C ~ 105°C	Tray	0.062\" (1.57mm)

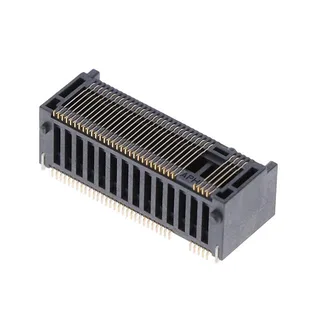

MDT850M01501	RFQ	Details	75	-	-	Surface Mount, Right Angle	0.020\" (0.50mm)	M.2	M.2 (NGFF) Mini Card	30.0µin (0.76µm)	Liquid Crystal Polymer (LCP)	-40°C ~ 85°C	Tape & Reel (TR) Cut Tape (CT)	-
10101704J62A	RFQ	Details	-	-	-	-	-	-	-	-	-	-	Box	-

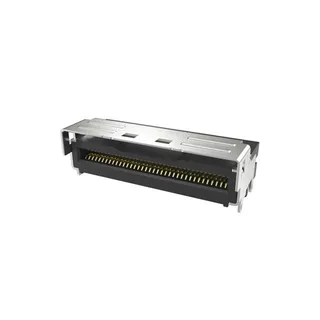

G42R12352HR	RFQ	Details	74	-	37	Surface Mount	0.024\" (0.60mm)	Mini Cool Edge 0.60mm	Non Specified - Dual Edge	30.0µin (0.76µm)	Thermoplastic	-40°C ~ 85°C	Tape & Reel (TR) Cut Tape (CT)	0.062\" (1.57mm)
G42V11312HR	RFQ	Details	38	-	19	Surface Mount	0.024\" (0.60mm)	Mini Cool Edge 0.60mm	Non Specified - Dual Edge	30.0µin (0.76µm)	Thermoplastic	-40°C ~ 85°C	Tape & Reel (TR) Cut Tape (CT)	0.062\" (1.57mm)
G42V11332HR	RFQ	Details	38	-	19	Surface Mount	0.024\" (0.60mm)	Mini Cool Edge 0.60mm	Non Specified - Dual Edge	30.0µin (0.76µm)	Thermoplastic	-40°C ~ 85°C	Tape & Reel (TR) Cut Tape (CT)	0.062\" (1.57mm)
G42V15332HR	RFQ	Details	50	-	25	Surface Mount	0.024\" (0.60mm)	Mini Cool Edge 0.60mm	Non Specified - Dual Edge	30.0µin (0.76µm)	Thermoplastic	-40°C ~ 85°C	Tape & Reel (TR) Cut Tape (CT)	0.062\" (1.57mm)
G64V32312HR	RFQ	Details	84	-	28; 14	Surface Mount	0.024\" (0.60mm)	Mini Cool Edge 0.60mm	Non Specified - Dual Edge	30.0µin (0.76µm)	Thermoplastic	-40°C ~ 85°C	Tape & Reel (TR) Cut Tape (CT)	-

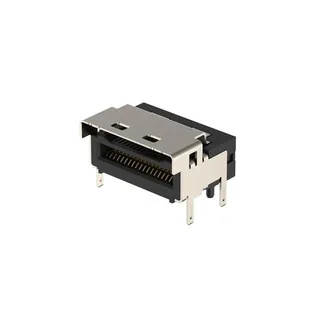

G97R21332HR	RFQ	Details	38	-	19	Surface Mount, Right Angle	0.024\" (0.60mm)	Mini Cool Edge 0.60mm	Non Specified - Dual Edge	30.0µin (0.76µm)	Thermoplastic	-	Tape & Reel (TR) Cut Tape (CT)	0.062\" (1.57mm)
G97R22332HR	RFQ	Details	74	-	37	Surface Mount, Right Angle	0.024\" (0.60mm)	Mini Cool Edge 0.60mm	Non Specified - Dual Edge	30.0µin (0.76µm)	Thermoplastic	-	Tape & Reel (TR) Cut Tape (CT)	0.062\" (1.57mm)
G97V21322HR	RFQ	Details	38	-	19	Surface Mount	0.024\" (0.60mm)	Mini Cool Edge 0.60mm	Non Specified - Dual Edge	30.0µin (0.76µm)	Thermoplastic	-	Tape & Reel (TR) Cut Tape (CT)	0.062\" (1.57mm)
G97V21352HR	RFQ	Details	38	-	19	Surface Mount	0.024\" (0.60mm)	Mini Cool Edge 0.60mm	Non Specified - Dual Edge	30.0µin (0.76µm)	Thermoplastic	-40°C ~ 85°C	Tape & Reel (TR) Cut Tape (CT)	0.062\" (1.57mm)
G97V22313HR	RFQ	Details	74	-	37	Surface Mount	0.024\" (0.60mm)	Mini Cool Edge 0.60mm	Non Specified - Dual Edge	30.0µin (0.76µm)	Thermoplastic	-	Tape & Reel (TR) Cut Tape (CT)	0.062\" (1.57mm)
G97V22322HR	RFQ	Details	74	-	37	Surface Mount	0.024\" (0.60mm)	Mini Cool Edge 0.60mm	Non Specified - Dual Edge	30.0µin (0.76µm)	Thermoplastic	-40°C ~ 85°C	Tape & Reel (TR) Cut Tape (CT)	0.062\" (1.57mm)
G97V22332HR	RFQ	Details	74	-	37	Surface Mount	0.024\" (0.60mm)	Mini Cool Edge 0.60mm	Non Specified - Dual Edge	30.0µin (0.76µm)	Thermoplastic	-40°C ~ 85°C	Tape & Reel (TR) Cut Tape (CT)	0.062\" (1.57mm)
G97V25332HR	RFQ	Details	50	-	25	Surface Mount	0.024\" (0.60mm)	Mini Cool Edge 0.60mm	Non Specified - Dual Edge	30.0µin (0.76µm)	Thermoplastic	-	Tape & Reel (TR) Cut Tape (CT)	0.062\" (1.57mm)

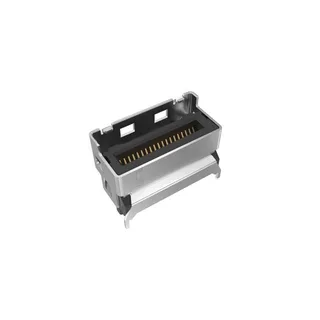

G98V11312HR	RFQ	Details	38	-	19	Surface Mount	0.024\" (0.60mm)	Mini Cool Edge 0.60mm	Non Specified - Dual Edge	30.0µin (0.76µm)	Thermoplastic	-40°C ~ 85°C	Tape & Reel (TR) Cut Tape (CT)	0.062\" (1.57mm)
