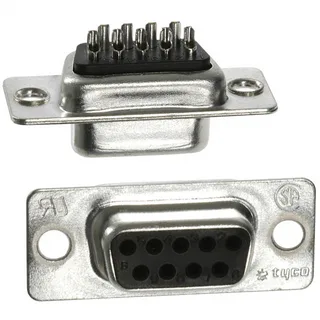

5-747905-7
TE Connectivity AMP Connectors
9TraySolder Cup
Ref. price$9.3200
Lead time on requestGet quote ›
TE Connectivity AMP Connectors 5747 Series
73 variants · TE Connectivity AMP Connectors
About the TE Connectivity AMP Connectors 5747 Series
The TE Connectivity AMP Connectors 5747 Series series groups 73 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common color of Black, contact finish of Gold and contact form of -. Variants differ by backset spacing, connector type and contact finish thickness, so you can match the exact backset spacing your application requires using the selection guide below.
Select a variant by
- Backset spacing
- - · 0.318\" (8.08mm) · 0.590\" (14.99mm)
- Connector type
- Plug, Male Pins · Receptacle, Female Sockets
- Contact finish thickness
- - · 30.0µin (0.76µm) · Flash
- Contact material
- Brass · Copper Alloy · Phosphor Bronze
- Current rating
- - · 3A · 6A
- Dielectric material
- - · Polybutylene Terephthalate (PBT), Glass Filled · Thermoplastic
- Features
- - · Board Lock, Ground Strap · Board Lock, Ground Strap, Grounding Indents · Ground Strap, Grounding Indents
- Flange feature
- Cable Side (4-40) · Housing/Shell (4-40) · Housing/Shell (Unthreaded) · Mating Side, Female Screwlock (4-40)
Shared specifications
- Color
- Black
- Contact finish
- Gold
- Contact form
- -
- Gender
- Signal
- Ingress protection
- -
- Material flammability rating
- UL94 V-0
- Operating temperature
- -55°C ~ 105°C
- Rows
- 2
- Wire gauge
- -
Variant comparison
| Parameter | 5747840-4 | 5-747905-7 | 5747236-6 | 5747459-2 | 5747840-6 | 5747461-1 |
|---|---|---|---|---|---|---|
| Backset spacing | 0.318\" (8.08mm) | - | 0.318\" (8.08mm) | 0.590\" (14.99mm) | 0.318\" (8.08mm) | 0.590\" (14.99mm) |
| Connector type | Plug, Male Pins | Receptacle, Female Sockets | Plug, Male Pins | Receptacle, Female Sockets | Plug, Male Pins | Receptacle, Female Sockets |
| Contact finish thickness | - | Flash | - | 30.0µin (0.76µm) | - | Flash |
| Contact material | Brass | Brass | Brass | Phosphor Bronze | Brass | Phosphor Bronze |
| Current rating | 6A | 3A | 6A | 6A | 6A | 6A |
| Dielectric material | - | Polybutylene Terephthalate (PBT), Glass Filled | - | - | - | - |
| Features | Board Lock, Ground Strap, Grounding Indents | - | Ground Strap, Grounding Indents | - | Board Lock, Ground Strap, Grounding Indents | - |
| Flange feature | Housing/Shell (4-40) | Cable Side (4-40) | Mating Side, Female Screwlock (4-40) | Housing/Shell (Unthreaded) | Mating Side, Female Screwlock (4-40) | Housing/Shell (Unthreaded) |
Request a quote on any TE Connectivity AMP Connectors 5747 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the TE Connectivity AMP Connectors 5747 Series variants differ?
- TE Connectivity AMP Connectors 5747 Series part numbers differ by backset spacing, connector type, contact finish thickness and contact material. Use the selection guide above to pick by backset spacing.
- How many TE Connectivity AMP Connectors 5747 Series part numbers are listed?
- 73 TE Connectivity AMP Connectors 5747 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for TE Connectivity AMP Connectors 5747 Series?
- Request a quote (RFQ) for any TE Connectivity AMP Connectors 5747 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
