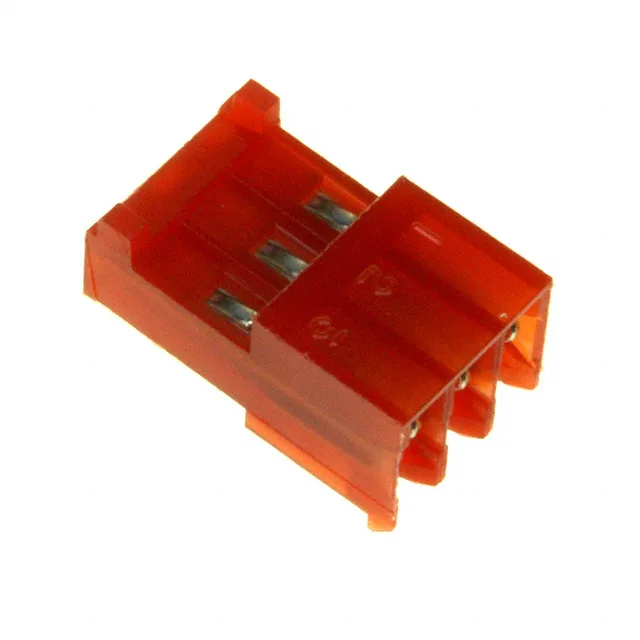

TE Connectivity MTA-100 IDC receptacle, 3-644042-3, 3 positions, 1 row, 0.100" (2.54mm) pitch, female socket, IDC termination, gold 30.0µin, free-hanging right-angle, locking ramp, closed end, 22 AWG, red.
| Parameter | Value |
|---|---|
| Series | MTA-100 |
| Wire type | Discrete or Ribbon Cable |
| Gender | Female Socket |
| Mounting type | Free Hanging (In-Line), Right Angle |
| Connector type | Receptacle |
| Fastening type | Locking Ramp |
| Wire gauge | 22 AWG |
| Cable termination | IDC |
| Color | Red |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Features | Closed End |
| Contact finish | Gold |
| Rows | 1 |
| Positions | 3 |
| Contact finish thickness | 30.0µin (0.76µm) |
The 3-644042-3: The closed-end feature blocks the last position, so you cannot accidentally push a wire past the contact area on a 3-conductor cable.
No stripping, no crimping. The 0.100" pitch matches standard rainbow ribbon cable conductor-to-conductor spacing, so watch pin-one alignment at the press fixture every time. The receptacle accepts both discrete wires and ribbon cable, giving you flexibility in harness construction.
This IDC receptacle is specified for 22 AWG wire and accepts either discrete wires or standard 0.100" pitch ribbon cable.
Yes, the 3-644042-3 is ROHS3 Compliant, meeting the current RoHS directive requirements.
