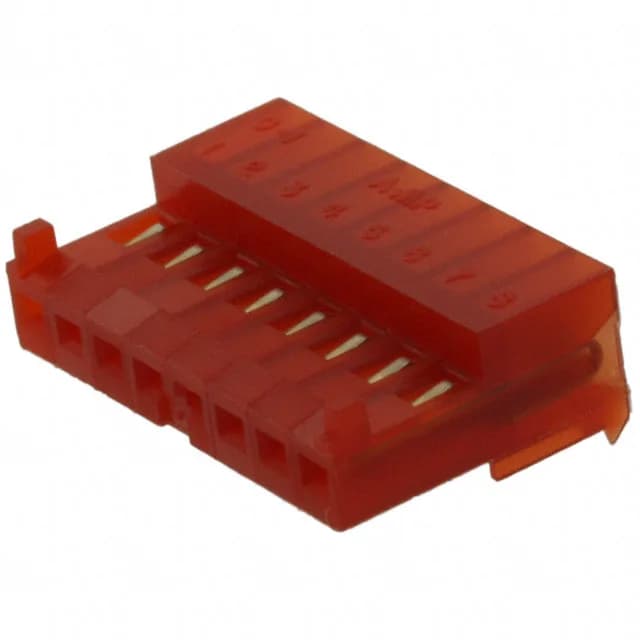

MTA-100 8-Position IDC Receptacle — 0.100" Pitch, Gold Contacts
The 0.100" (2.54 mm) pitch is the standard MTA-100 spacing — a direct footprint match for the mating MTA-100 header. The locking ramp fastening type holds the mate under vibration, and the closed-end housing prevents wire over-insertion during cable assembly. Red housing, free-hanging right-angle mount, ROHS3 compliant.
Cable Prep and Termination — IDC for 22 AWG Discrete or Ribbon
This receptacle accepts 22 AWG wire — discrete or ribbon cable — and terminates via IDC (insulation displacement contact). No wire stripping needed; the IDC slot pierces the insulation during termination. The closed-end feature gives a positive stop for the wire, so the conductor seats at the correct depth every time. For harness builders: use the matching TE hand tool or press for consistent IDC insertion force across all 8 positions.
Mating and Mounting — Locking Ramp, Right-Angle Free Hanging
Mates with the standard MTA-100 header (0.100" pitch, single row). Gold-on-gold contact interface maintains low resistance over repeated mate/unmate cycles.
