The 808-AG11D-LF is classified as Obsolete by TE Connectivity AMP Connectors. No official successor or pin-compatible alternative is recorded from the original manufacturer. No stock-holding claim — sourced per request.

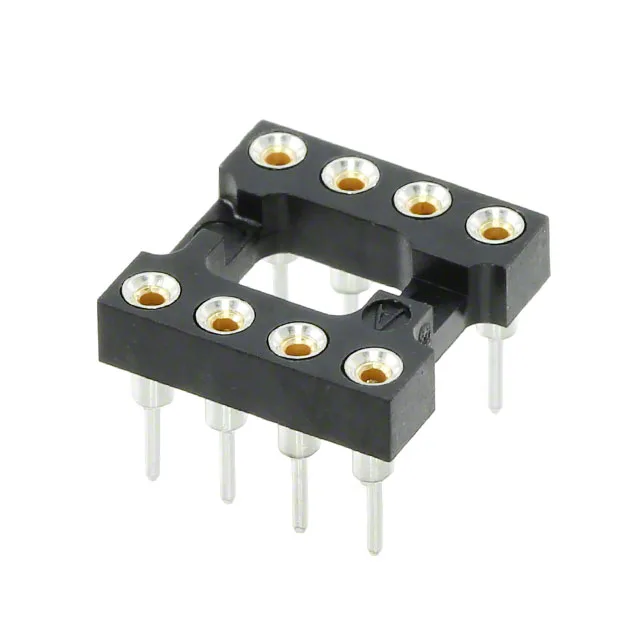

TE 808-AG11D-LF 8-Pin DIP Header, 2.54mm Pitch, Obsolete
MPN808-AG11D-LF
Obsolete
TE Connectivity AMP Connectors 800 series DIP header, order code 808-AG11D-LF, 8 positions, dual row, 0.100" (2.54mm) pitch, gold-plated mating contacts, through-hole solder termination, open-frame construction.
$1.7700Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — typically 7–15 days door-to-door
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | DIP, 0.3\" (7.62mm) Row Spacing |
| Series | 800 |
| Mounting | Through Hole |
| Operating temperature | -55°C~105°C |
| Housing material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Contact material - post | Copper |
| Contact material - mating | Beryllium Copper |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Open Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
All specifications
| Parameter | Value |
|---|---|
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 10mOhm |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Termination post length | 0.125\" (3.18mm) |
| Contact finish thickness - post | 25.0µin (0.63µm) |
| Contact finish thickness - mating | 25.0µin (0.63µm) |
| Number of positions or pins | 8 (2 x 4) |
Product details
Frequently asked questions
What compliance documentation is available for the 808-AG11D-LF?
The housing material is rated UL94 V-0. RoHS and REACH status are not specified in the available records; confirm with the supplier at RFQ.
