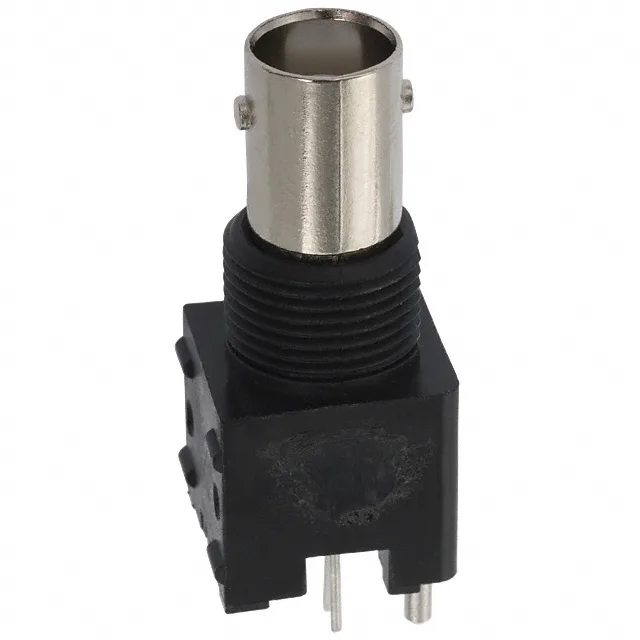

5227222-1
TE Connectivity AMP Connectors
Board Guide, Isolated-55°C ~ 85°CBulk
Ref. price$4.3200
Lead time on requestGet quote ›
TE Connectivity AMP Connectors 5227 Series
28 variants · TE Connectivity AMP Connectors
About the TE Connectivity AMP Connectors 5227 Series
The TE Connectivity AMP Connectors 5227 Series series groups 28 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common body finish of Nickel, body material of Zinc and cable group of -. Variants differ by center contact plating, contact termination and dielectric material, so you can match the exact center contact plating your application requires using the selection guide below. All listed TE Connectivity AMP Connectors 5227 Series part numbers are active and orderable.
Select a variant by
- Center contact plating
- Gold · Tin
- Contact termination
- Solder · Solder Cup
- Dielectric material
- Polybutylene Terephthalate (PBT) · Polybutylene Terephthalate (PBT), Polyester · Polymethylpentene (PMP)
- Fastening type
- Bayonet Lock · Threaded
- Features
- - · Board Guide, Isolated · Extended Insulation · Isolated
- Housing color
- Black, Silver · Natural, Silver · Silver · Silver, White
- Impedance
- 50 Ohms · 50Ohm
- Includes
- - · 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut · 3 pcs - 1 Connector, 1 Nut, 1 Solder Tag
Shared specifications
- Body finish
- Nickel
- Body material
- Zinc
- Cable group
- -
- Center contact material
- Phosphor Bronze
- Connector type
- Jack, Female Socket
- Frequency - max
- 4 GHz
- Ingress protection
- -
- Insertion loss
- -
- Mating cycles
- 500
- Number of ports
- 1
- Shield termination
- Solder
- Voltage rating
- 500 V
Variant comparison
| Parameter | 5227222-1 | 5227673-1 | 5227676-1 | 5227726-3 | 5227835-1 | 5227161-3 |
|---|---|---|---|---|---|---|
| Center contact plating | Tin | Gold | Gold | Gold | Gold | Gold |
| Contact termination | Solder | Solder | Solder | Solder Cup | Solder | Solder |
| Dielectric material | Polymethylpentene (PMP) | Polymethylpentene (PMP) | Polymethylpentene (PMP) | Polybutylene Terephthalate (PBT) | Polymethylpentene (PMP) | Polymethylpentene (PMP) |
| Fastening type | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock | Threaded | Bayonet Lock |
| Features | Board Guide, Isolated | - | - | Isolated | - | Board Guide, Isolated |
| Housing color | Natural, Silver | Silver | Silver | Silver, White | Silver | Silver, White |
| Impedance | 50 Ohms | 50 Ohms | 50 Ohms | 50Ohm | 50Ohm | 50 Ohms |
| Includes | - | - | - | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut | - | - |
Request a quote on any TE Connectivity AMP Connectors 5227 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the TE Connectivity AMP Connectors 5227 Series variants differ?
- TE Connectivity AMP Connectors 5227 Series part numbers differ by center contact plating, contact termination, dielectric material and fastening type. Use the selection guide above to pick by center contact plating.
- How many TE Connectivity AMP Connectors 5227 Series part numbers are listed?
- 28 TE Connectivity AMP Connectors 5227 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for TE Connectivity AMP Connectors 5227 Series?
- Request a quote (RFQ) for any TE Connectivity AMP Connectors 5227 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
