USB-A-S-S-B-SM2-R-TR
Samtec Inc.
Tape & Reel (TR) Cut Tape (CT)Board Guide, Solder RetentionReceptacle
Ref. price$2.7800
Lead time on requestGet quote ›
Samtec Inc. USBA Series
24 variants · Samtec Inc.
About the Samtec Inc. USBA Series
The Samtec Inc. USBA Series series groups 24 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common contact finish of Gold, current rating of - and ingress protection of -. Variants differ by connector type, features and gender, so you can match the exact connector type your application requires using the selection guide below. All listed Samtec Inc. USBA Series part numbers are active and orderable.
Select a variant by
- Connector type

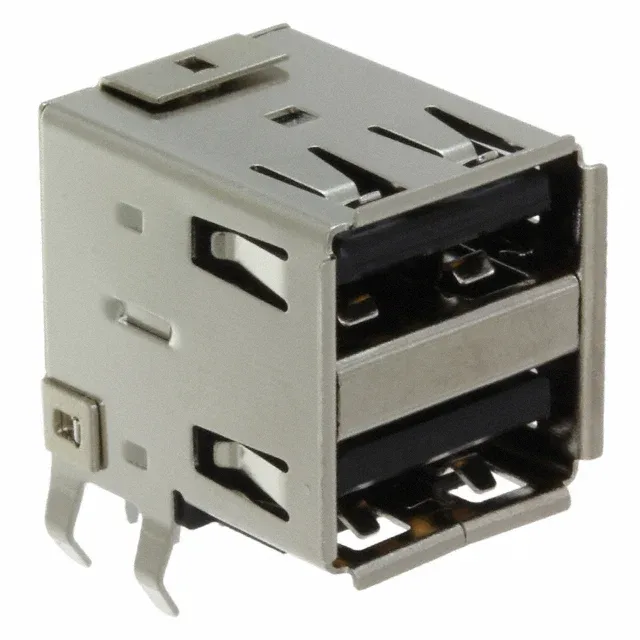

- USB-A (USB TYPE-A) · USB-A (USB TYPE-A), Stacked
- Features
- Board Guide, Solder Retention · Board Lock
- Gender
- Plug · Receptacle
- Insulation color
- Black · White
- Material flammability rating
- - · UL94 V-0
- Mounting feature
- Horizontal · Vertical, Flag
- Mounting type
- Surface Mount, Right Angle · Surface Mount, Right Angle; Through Hole · Through Hole, Right Angle
- Number of ports
- 1 · 2
Shared specifications
- Contact finish
- Gold
- Current rating
- -
- Ingress protection
- -
- Mating cycles
- 1500
- Specifications
- USB 2.0
- Termination
- Solder
- Voltage - rated
- 30VAC
Variant comparison
| Parameter | USB-AM-S-F-B-TH | USB-A-S-S-B-SM2-R-TR | USB-A-S-F-B-SM2 | USB-A-S-F-W-SM2-R-TR | USB-A-S-F-W-TH | USB-A-S-F-B-SM2-TR |
|---|---|---|---|---|---|---|
| Connector type | USB-A (USB TYPE-A) | USB-A (USB TYPE-A) | USB-A (USB TYPE-A) | USB-A (USB TYPE-A) | USB-A (USB TYPE-A) | USB-A (USB TYPE-A) |
| Features | Board Lock | Board Guide, Solder Retention | Board Guide, Solder Retention | Board Guide, Solder Retention | Board Lock | Board Guide, Solder Retention |
| Gender | Plug | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle |
| Insulation color | Black | Black | Black | White | White | Black |
| Material flammability rating | - | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Mounting feature | Horizontal | Horizontal | Horizontal | Horizontal | Horizontal | Horizontal |
| Mounting type | Through Hole, Right Angle | Surface Mount, Right Angle; Through Hole | Surface Mount, Right Angle | Surface Mount, Right Angle; Through Hole | Through Hole, Right Angle | Surface Mount, Right Angle; Through Hole |
| Number of ports | 1 | 1 | 1 | 1 | 1 | 1 |
Request a quote on any Samtec Inc. USBA Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Samtec Inc. USBA Series variants differ?
- Samtec Inc. USBA Series part numbers differ by connector type, features, gender and insulation color. Use the selection guide above to pick by connector type.
- How many Samtec Inc. USBA Series part numbers are listed?
- 24 Samtec Inc. USBA Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Samtec Inc. USBA Series?
- Request a quote (RFQ) for any Samtec Inc. USBA Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
