TE Connectivity AMP Connectors — Card-Edge Connectors

TE Connectivity AMP Connectors Card-Edge Connectors — 94 part numbers with specifications and datasheets. Filter by key specs and request a quote on IC Source

title

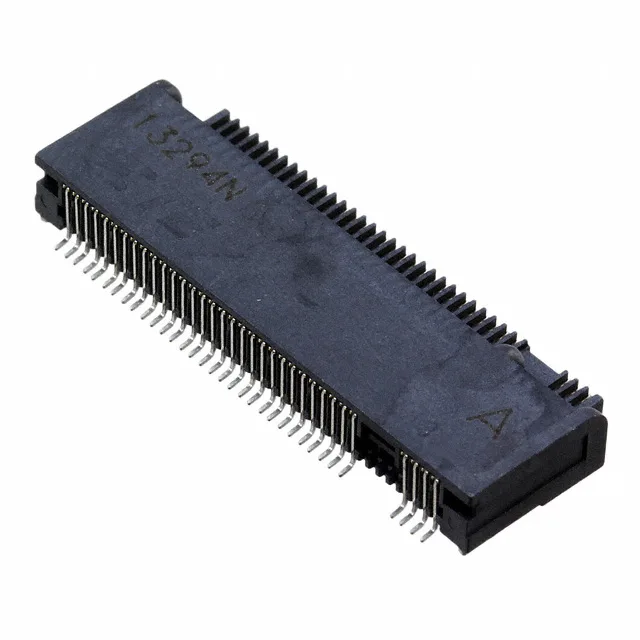

1-1761465-1 · 118982-1 · 1-2199119-5 · 1-2199119-6
Base Product Number
1761465 · 118982 · 2199119 · 2199230
Number of Positions
36 · 67 · 64 · 98
Number of Positions/Bay/Row
11; 7 · 11; 21 · 11; 38 · 11; 49
Card Type
PCI Express™ · M.2 (NGFF) Mini Card · PCI™ · PCI 5V 64 Bit
Material - Insulation
Thermoplastic · Polyamide (PA9T), Nylon 9T, Glass Filled · Polyester, Glass Filled · Polyester Thermoplastic, Glass Filled
Card Thickness
0.062" (1.57mm) · 0.054" ~ 0.070" (1.37mm ~ 1.78mm) · 0.057" ~ 0.072" (1.45mm ~ 1.82mm) · 0.059" (1.50mm)
Contact Finish Thickness
30.0µin (0.76µm) · 15.0µin (0.38µm) · 10.0µin (0.25µm) · 16.0µin (0.41µm)
